Lastnosti na dlani
-
Max. measurement error
Mass flow (liquid): ±0.20 %
Volume flow (liquid): ±0.30 % -
Measuring range
0 to 70 000 kg/h (0 to 2570 lb/min)
-
Medium temperature range
–50 to +125 °C (–58 to +257 °F)
-
Max. process pressure
PN 40, Class 300
-
Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Področje uporabe

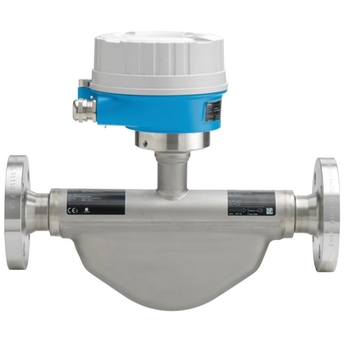

The LPGmass is specially designed for flow measurement of LPG for dispensing and truck unloading. It combines an integrated temperature measurement with intelligent conversion functions, providing volume correction directly on site. LPGmass will be the preferred choice for system integrators, skid builders and equipment manufacturers.
Measuring principle operates independently of physical fluid properties such as viscosity or density
Accurate measurement of liquefied petroleum gas in refueling and distribution applications.
Device properties
Flow rates up to 70 000 kg/h (2570 lb/min)
Volume flow calculation according to API table 53
Robust, compact transmitter housing
Modbus RS485
Designed to meet application needs
Prednosti
Excellent operational safety – reliable under extreme ambient conditions
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Fast commissioning – pre-configured devices
Automatic recovery of data for servicing
Videoposnetki
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
-
Navodila za uporabo (BA)
LPGmass Modbus RS485 Operating Instructions
Angleška različica - 07/2016
Coriolis flowmeter
EN SL 01/07/2016Jezik:
angleščina
Verzija:
01/07/2016
Velikost datoteke:
2.5 MB
Ime datoteke:
BA01316DEN_0116.pdf
-
-
-
Parametri naprave (GP)
LPGmass Modbus RS485 Description of Device Parameters
Angleška različica - 04/2016
Coriolis flowmeter
EN SL 01/04/2016Jezik:
angleščina
Verzija:
01/04/2016
Velikost datoteke:
938.9 KB
Ime datoteke:
GP01093DEN_0116.pdf
-
-
-
Tehnične informacije (TI)
LPGmass Technical Information
Coriolis flowmeter
EN SL 01/07/2016Jezik:
angleščina
Verzija:
01/07/2016
Velikost datoteke:
1.7 MB
Ime datoteke:
TI01169DEN_0116.pdf
-
-
-
Navodila za uporabo (BA)
LPGmass Modbus RS485 Operating Instructions
Coriolis flowmeter
EN SL 01/07/2016Jezik:
angleščina
Verzija:
01/07/2016
Velikost datoteke:
2.5 MB
Ime datoteke:
BA01316DEN_0116.pdf
-
-
-
Parametri naprave (GP)
LPGmass Modbus RS485 Description of Device Parameters
Coriolis flowmeter
EN SL 01/04/2016Jezik:
angleščina
Verzija:
01/04/2016
Velikost datoteke:
938.9 KB
Ime datoteke:
GP01093DEN_0116.pdf
-
-
-
Kratka navodila (KA)
LPGmass Brief Operating Instructions
Coriolis flowmeter
EN SL 01/07/2016Jezik:
angleščina
Verzija:
01/07/2016
Velikost datoteke:
1.3 MB
Ime datoteke:
KA01242DEN_0116.pdf
-
-
-
Navodila za vgradnjo (EA)
Electrical trace heating systems
Promass 100, 200, 300, 500, 500-digital, LNGmass, CNGmass, LPGmass
EN SL 01/03/2021Jezik:
angleščina
Verzija:
01/03/2021
Velikost datoteke:
883.1 KB
Ime datoteke:
EA01339DA2_0121.pdf
-
-
-
Navodila za vgradnjo (EA)
EA Replacing Small parts
Proline 10, 100, 400, 800 Index C, 500, 500-digital, CNG-, LNG-, LPGmass
EN SL 01/01/202401/05/202101/04/202131/07/202002/08/2019Jezik:
angleščina
Verzija:
01/01/2024
Velikost datoteke:
518.1 KB
Ime datoteke:
EA01119DA2_0923-00.pdf
-
-
-
Navodila za vgradnjo (EA)
Safety Instructions for Spare Parts Installation Instructions
Flowmeter
EN SL 01/03/201828/11/201325/04/2013Jezik:
angleščina
Verzija:
01/03/2018
Velikost datoteke:
139.5 KB
Ime datoteke:
EA01051DA2_0318.pdf
-
-
-
Navodila za vgradnjo (EA)
EA Replacing Spare Parts
CNG-, LNG-, LPGmass, Proline 100, 300, 400 Index C, 500, 500-digital
EN SL 01/01/202415/12/202101/06/202101/06/202002/08/2019Jezik:
angleščina
Verzija:
01/01/2024
Velikost datoteke:
1.9 MB
Ime datoteke:
EA01018DA2_1523-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA LPGmass
NEPSI:
Zone 1, Zone 21EN SL 21/06/202301/04/201901/07/2016Jezik:
angleščina
Verzija:
21/06/2023
Velikost datoteke:
523.1 KB
Ime datoteke:
XA01413DEN_0323-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA LPGmass
INMETRO:
Zone 1
Zone 21EN SL 27/04/2023Jezik:
angleščina
Verzija:
27/04/2023
Velikost datoteke:
451.4 KB
Ime datoteke:
XA01412DEN_0223-00.pdf
-
