Lastnosti na dlani
-
Process temperature
-40 °C ... 150 °C
(-40 °F ... 302 °F) -
Process pressure / max. overpressure limit
Vacuum ... 30 bar
(Vacuum ... 435 psi) -
Min. conductivity of medium
20 µS/cm
Področje uporabe

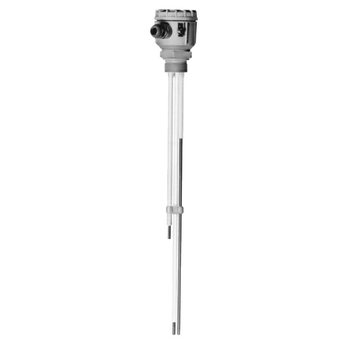

The triple rod probe 11363Z is a high resistant probe for applications requiring accurate point level detection or overfill prevention in plastic vessels or vessels made of non-conducting material. Three different limit points can be detected with one probe in vessels with electrically conducting walls.
Two-point point level detection in plastic vessels and vessels made of non-conducting material. For applications in explosion-hazardous areas or as overfill prevention for water-polluting liquids.
Process connections: Threads and flanges
Measuring range: 100 to 4,000mm (5.9 to 157")
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +30bar (-15 to +435psi)
Components: Transmitter FTW325
International explosion protection certificates, overfill prevention WHG
Prednosti
Reliable and safe measurement
Safe measurement even for applications in explosion-hazardous area
Variable process connections for various applications
Segment Lean
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
Three-rod probes 11363, 11363 ZTechnical Information
High resistant probes,
for corrosive liquids,
for use in plastic vesselsEN SL 09/08/201801/06/200330/04/1997Jezik:
angleščina
Verzija:
09/08/2018
Velikost datoteke:
473.8 KB
Ime datoteke:
TI00122FEN_1318.pdf
-
-
-
Ex varnostna navodila (XA)
Conductive Limit Detection 11362Z, 11363Z, 11375Z, 11961Z
II 1/2 G Ex ia IIC T6 Ga/Gb
Jezik:
angleščina
Verzija:
13/09/2021
Velikost datoteke:
403.2 KB
Ime datoteke:
XA02618FEN_0121-00.pdf
-
-
-
Ex varnostna navodila (XA)
Instrumenti za konduktivno zaznavanje mejnih nivojev 11362Z, 11363Z, 11375Z, 11961Z
II 1/2 G Ex ia IIC T6 Ga/Gb
EN SL 07/06/202129/08/201601/08/2002Jezik:
slovenščina
Verzija:
07/06/2021
Velikost datoteke:
406.9 KB
Ime datoteke:
XA00197FSL_1421.pdf
-
-
-
Ex varnostna navodila (XA)
Safety Instructions Conductive Limit Detection 11362Z, 11363Z
Ex ia IIC T6-T4
GYJ13.1132X (NEPSI)EN SL 17/07/2013Jezik:
angleščina
Verzija:
17/07/2013
Velikost datoteke:
254.2 KB
Ime datoteke:
XA01094FB2_0113.pdf
-
-
-
Izjava EU
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration number: EU_01077_01.22EN SL 31/08/2022Jezik:
angleščina
Verzija:
31/08/2022
Velikost datoteke:
997.8 KB
Ime datoteke:
EU_01077_01.22.pdf
-
-
-
Izjava EU
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration number: TÜV02ATEX1951XEN SL 14/01/2021Jezik:
angleščina
Verzija:
14/01/2021
Velikost datoteke:
2.4 MB
Ime datoteke:
EG_02 050-f.pdf
-
-
-
Ocenjena skladnost za Združeno kraljestvo
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration number: UK_00271_01.21Jezik:
angleščina
Verzija:
11/05/2021
Velikost datoteke:
267 KB
Ime datoteke:
UK_00271_01.21.pdf
-
-
-
Ocenjena skladnost za Združeno kraljestvo
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Declaration number: UK_00434_01.21EN SL 12/10/2021Jezik:
angleščina
Verzija:
12/10/2021
Velikost datoteke:
302.1 KB
Ime datoteke:
UK_00434_01.21.pdf
-
-
-
Protieksplozijska zaščita
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-, S11362Z-,
S11363Z-, S11375Z-, S11961Z-
Region: Europe (ATEX)
Approval agency: TÜV
Category: II 1/2 G, II 1 G
Protection: Ex ia IIC T6 Ga, Ex ia IIC T6 Ga/GbEN SL 18/01/2021Jezik:
angleščina
Verzija:
18/01/2021
Velikost datoteke:
880.4 KB
Ime datoteke:
TUV 02 ATEX 1951X_issue01.pdf
-
-
-
Protieksplozijska zaščita
Product family: Doppelstabsonde, Dreistabsonde, Einstabsonde
Product root: 11362Z-, 11363Z-, 11375Z-, 11961Z-
Region: Great Britain
Approval agency: CML
Protection: Ex iJezik:
angleščina
Verzija:
09/09/2021
Velikost datoteke:
109.2 KB
Ime datoteke:
CML 21UKEX2656X Iss.0.pdf
-
