Tank gauging
Analogue Transmitter AT1

Analogue Transmitter AT1 - Tank gauging ©Endress+Hauser
Analogue Transmitter AT1 ©Endress+Hauser
  • Analogue Transmitter AT1 - Tank gauging
  • Analogue Transmitter AT1

For remote monitoring of a tank

The AT1 transmitter is designed to attach to the LT5 level gauge. Main functions are 4 to 20mA analogue output and alarm contact output.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

AT1
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Transmission of the tank level by analogue signals

    • Max. 6 alarm contact outputs

    • Easy maintenance due to simple mechanism

  • Field of application

    Ambient temperature: -20 to +60°C (-4 to +140°F)

Documents / Manuals / Software

  • Analog Transmitter AT1000 AT1 - Technical Information

    AT1 analog transmitter is designed to be installed to the LT, and LTC
    series float level gauge. One of the main functions of the transmitter
    is to transmit the level gauge’s signals into voltage, electric current,
    and resistance output signals.
    Because this model has a variety of output signal types, it has an
    extensive connection compatibility with various level setting devices.
    In addition, the alarm and adjustment contact signals are equipped with
    up to six points, enabling the operator to direct the valves andpumps
    with this transmitter alone.

    Technical Information (TI)
  • Analog Transmitter AT1000 AT1 － Operating Instructions

    AT1 analog transmitter is designed to be installed onto LT and LTC
    series level gauging systems. The device transmits the level information
    into electric current, voltage, and resistance signals. It can also be
    equipped with a maximum of six alarm contact signals.
    In addition to transmitting the level, contact signals can be received
    by this transmitter alone, enabling easy control ofthevalve and pump.

    Operating Instruction (BA)
  • Operating Instractions AT1 Operating Instractions AT1000

    Tank Gauging

    Operating Instruction (BA)
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Russian

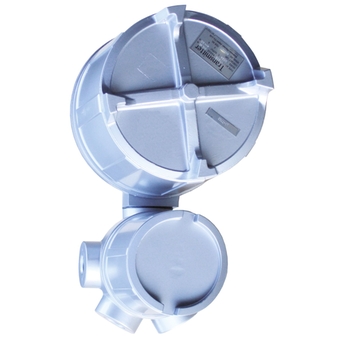

  • AT1- Picture

    Tank gauging

    10/07
    Language neutral
  • Sakura

    Product Code: AT1-
    Region/Country: Japan
    Approval Agency: TIIS

    Explosion Protection
    Japanese
  • Sakura

    Product Code: AT1-
    Region/Country: Japan
    Approval Agency: TIIS

    Explosion Protection
    Japanese
  • Sakura

    Product Code: AT1-
    Region/Country: Japan
    Approval Agency: TIIS

    Explosion Protection
    Japanese

Accessories / Spare parts

Nr
Order code
Specification
  • 11
    • Nr 11 Order code 017880-5025

      O-ring, Large terminal box, AT5 body,CR

      Size: D120mm, d3.5mm. Material: CR. Part: terminal box, large. Usage: AT1/500, B3-11, DRM9700, DU/R, MPC2, TGM5, TMD1.

    • Nr 11 Order code 017880-5026

      O-ring, terminal box, small, CR

      Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.

    • Nr 11 Order code 017880-5027

      O-ring, El-compartment, large

      Size: D196mm, d7mm. Material: CR (Chloroprene Rubber). Part: main body cover, AT1/AT500, B3-11. Usage: AT1, AT500, B3-11.

    • Nr 11 Order code 017871-1231

      O-ring, LT/transmitter coupling

      Size: D60mm, d3.5m. Material: CR (Chloroprene Rubber). Part: LT-coupling. Usage: AT1/AT500, DU, DUR, TMD1.

  • 21
    • Nr 21 Order code 017860-6323

      Cover, terminal box

      Short terminal box cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, DRM9700, MPC, balancer, TMD1.

    • Nr 21 Order code 017860-6326

      Large-short cover, main body

      Short main mody cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, B3-11.

    • Nr 21 Order code 017860-6324

      Cover, terminal box, large

      Large terminal box cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, DUR, MPC, TMD1, B3-11.

  • 31
  • 32
  • 33
    • Nr 33 Order code 017871-1202

      Potentiometer, CPP45, LT, LTC2230/40

      Type: CPP45-RK with R: 500 ohm. For LT series, LTC2230/LTC2240. Usage: AT1.

    • Nr 33 Order code 56004470

      Potentiometer, CPP45, LTC2110

      Type: CPP45-RK with R: 500 ohm. For LTC2110. Usage: AT1.

  • 36
  • 37
  • 45
  • 75
    • Nr 75 Order code 70106501

      Stud bolt M10x40L,spr.washer,washer,4set

      For transmitter fitting. Usage: AT1.

    • Nr 75 Order code 017871-1233

      Coupling, transmitter, LT11/LT12

      ADC, with nut, M4, washer, O-ring. Stud,M10x37/17x10L,nut,M10, 4x washer. Usage: AT1, AT500.

    • Nr 75 Order code 017871-1232

      Coupling, male,for gauge head, MP/HP

      Gauge head side,male pin type,Alu plate without female coupling for transmitter with washer M4 SUS304,nut M4 SUS304. Usage: LT5, LT14/LT16, LT34/LT36.

  • 38
  • 40
  • 42
