RTD IO-Link temperature head transmitter iTEMP TMT36 for head mount process temperature sensors

iTEMP TMT36 IO-Link temperature head transmitter

Accurate and reliable process temperature measurement for one RTD sensor with integrated IO-Link function

TMT36

Primerjava

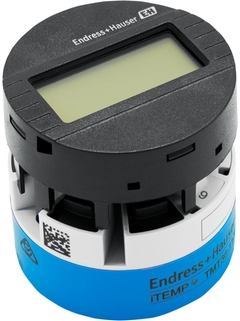

IO-Link RTD temperature head transmitter iTEMP TMT36 with plug-in display

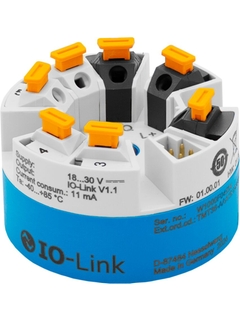

IO-Link RTD temperature transmitter iTEMP TMT36 with push-in terminals for tool-free installation — IO-Link RTD temperature head transmitter iTEMP TMT36 with push-in terminals for quick and tool-free installation

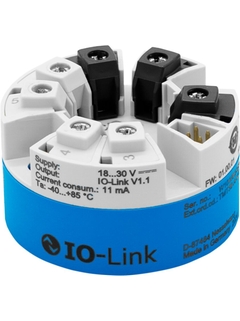

IO-Link RTD temperature transmitter iTEMP TMT36 with new screw terminal design

iTEMP TMT36 RTD IO-Link head transmitters are available for various temperature assemblies — iTEMP TMT36 IO-Link RTD temperature head transmitters are available for a wide range of industrial or hygienic temperature sensors and assemblies

IO-Link RTD temperature head transmitter iTEMP TMT36 for process temperature sensors

Lastnosti na dlani

Accuracy

(Pt100, -50...200 °C) <= 0,15 K
(Pt100, -58...392 °F) <= 0,15 K

Vse specifikacije

Področje uporabe

The iTEMP TMT36 is a reliable, long lasting, single-channel IO-Link temperature head transmitter with a form B connection head. Individual transmitter-sensor matching with Callendar van Dusen linearization further improves the temperature measurement accuracy of RTD sensors. The IO-Link capable iTEMP TMT36 can be installed in all modular Endress+Hauser thermometers to digitize a larger number of applications with special requirements using IO-Link technology.

The temperature transmitter is characterized by its reliability, long-term stability, high precision and diagnostic functions
For maximum safety and availability
Installation in terminal head form B (flat face), or on DIN rail with DIN rail clip
IO-Link (1x PNP, NPN or push-pull switch output, configurable)

Prednosti

Push-in terminals for fast, tool-free wiring during installation or maintenance
Simple parametrization via free software tools (requires SFP20)
Transmitter-sensor matching using Callendar van Dusen linearization for critical measurement points
Improved RTD measurement accuracy up to 0.15 K and long-term stability
Safe and reliable operation
IO-Link technology to digitize the the last mile of your plant
