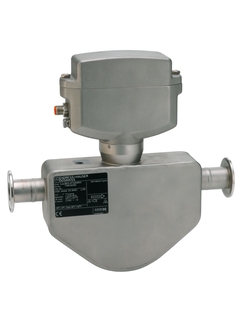

Picture of Coriolis flowmeter Dosimass / 8BE for filling and bottling applications

Dosimass
Coriolis flowmeter

The compact sensor with an ultra-compact transmitter

8BE
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-
Picture of Coriolis flowmeter Dosimass / 8BE for filling and bottling applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimass for filling and bottling applications

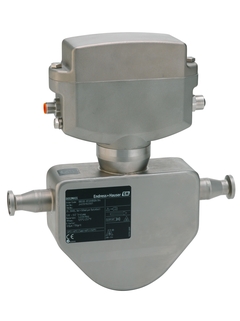

Picture of Coriolis flowmeter Dosimass / 8BE with batching functionality
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimass with batching functionality

Dosimass for filling and bottling applications

Lastnosti na dlani

  • Max. measurement error

    Mass flow (liquid): ±0.15 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 18 000 kg/h (0 to 660 lb/min)

  • Medium temperature range

    –40 to +125 °C (–40 to +257 °F)
    150 °C allowed for 1 h

  • Max. process pressure

    PN 40

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4404 (316/316L)

Področje uporabe

Dosimass is specially designed for filling and bottling applications. It measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability. Designed for applications where space is a premium, Dosimass will be the preferred choice for system integrators, skid builders and equipment manufacturer.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Measurement of liquids with the most diverse properties in the continuous process control & batching applications.

Device properties

  • Nominal diameter: DN 8 to 25 (3/8 to 1")

  • Various hygienic process connections, 3A conform

  • CIP, SIP cleanable sensor

  • Robust, ultra-compact transmitter housing

  • Pulse/frequency/switch output, Modbus RS485

  • Excellent and easy cleanable transmitter

Prednosti

  • High process safety – high measuring accuracy for different media in shortest filling time

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Versatile and time-saving wiring – plug connector

  • Fast commissioning – pre-configured devices

  • Automatic recovery of data for servicing

Videoposnetki

  • The Coriolis Flow Measuring Principle

Segment Xpert

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Xpert: Obvladovanje najbolj zahtevnih aplikacij ©Endress+Hauser

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo
Loading alternative products

Zgodbe o uspehu

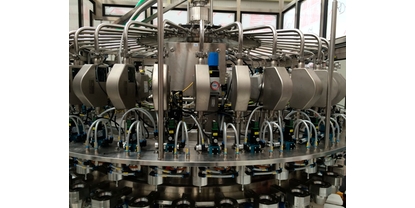

  • RONCHI MARIO S.p.A., filler with Endress+Hauser Dosimass flowmeter RONCHI MARIO S.p.A., filler with Endress+Hauser Dosimass flowmeter
