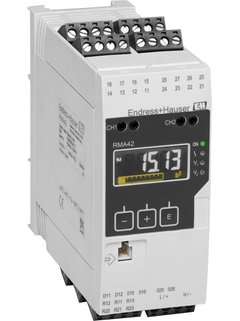

Product picture process transmitter RMA42

RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!

RMA42
Please Wait (spinning wheel)
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-

Lastnosti na dlani

  • Input

    2 x universal (current, voltage, R, RTD, TC, resistance)

  • Output

    2 x Analog (current, voltage)

  • Output

    2 x Analog (current, voltage)

  • Display

    LCD
    7 segment
    Multicolour
    Bargraph
    TAG unit
    Colour change in case of failure

  • Power Supply

    Not defined

Področje uporabe

Analog measured values are indicated, evaluated and calculated by the process transmitter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

The RMA42 process transmitter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.

  • Plant and apparatus engineering

  • Control rooms and cabinets

  • Process control, recording and supervision

  • Signal adjustment and conversion

  • Overfill protection (WHG)

Prednosti

  • SIL 2 approval (optional);

    Marine approval

  • 1 or 2 calculated values and linearization table

  • Min./max. value saved

  • 5-digit 7-segment LC display, backlit

  • 1 or 2 universal inputs

  • 2 relays (optional)

  • Digital status output (Open Collector)
