Promag 53W

Prikaži vse: Pretok Elektromagnetni

Ta izdelek ni več na voljo.

V razdelku predhodnik/naslednik preverite novo generacijo izdelka ali se obrnite na lokalnega zastopnika podjetja Endress + Hauser.

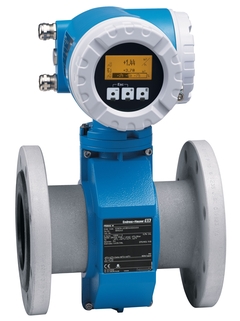

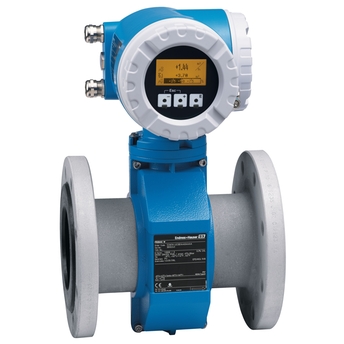

Electromagnetic flowmeter - Proline Promag 53W

Predhodnik

Naslednik

F

L

E

X
Proline Promag W 400 / 5W4C

Versatile standard flowmeter for the water and wastewater industry. Ideal for water measurement, e.g. drinking water, utility water and industrial/municipal wastewater.
Več informacij

Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

Price on request

from CHF ??.-

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Liquids

Merilni princip

Electromagnetic
Product headline

The sensor with IP68 (Type 6P encl.) combined with a transmitter with flexible system integration .
The specialist in the water and wastewater industry for the most demanding applications.
Sensor features

Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter features

Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics. Easy calculation – bidirectional totalizers. Automatic recovery of data for servicing.
4-line backlit display with touch control. Device as compact or remote version. HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP.
Nominal diameter range

DN 25...2000
1"...78"
Max. measurement error

±0.2%
Measuring range

0...110'000 m3/h
Max. process pressure

PN6...40
Cl 150...300
JIS 10...20K
AWWA Class D
AS 2129 Table E
AS 4087 PN16
Medium temperature range

-20...+80°C
(-4...+176°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Operation

Four line display with backlit
Touch control
Outputs

4...20 mA
Pulse/Frequency (active/passive)
Relays
Status
Inputs

Status
Current input
Digital communication

HART
PROFIBUS PA
Profibus DP
FOUNDATION Fieldbus
Hazardous area approvals

ATEX, FM, CSA
Product safety

CE, C-tick, EAC marking

Promag 53W

Predhodnik

Naslednik

Proline Promag W 400 / 5W4C

Merilni princip

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Kit P.s.b. 50/51/53 85-260VAC

Kit p.s.b. 50/53 85-260VAC HE

Kit p.s.b. 50/53 85-260VAC HE

Kit P.s.b. 50/51/53 85-260VAC Ex

Kit p.s.b. 50/53 85-260VAC HE Ex

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit p.s.b.50/53 20-55VAC 16-62VDC HE

Kit P.s.b. 50/51/53 20-55VAC16-62VDC Ex

Kit p.s.b.50/53 20-55VAC 16-62VDC HE Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit meas. amplifier PMAG 53 WEA EX

Kit meas. amplifier 53 WEA HE Ex

Kit meas. amplifier PMAG 53 WEA

Kit meas. amplifier 53 WEA HE

Kit meas. amplifier PMAG 53 SEA EX

Kit meas. amplifier 53 SEA HE Ex

Kit meas. amplifier PMAG 53 SEA

Kit meas. amplifier 53 SEA HE

Kit meas. amplifier PMAG 53 EES EX

Kit meas. amplifier 53 EES HE Ex

Kit meas. amplifier PMAG 53 EES

Kit meas. amplifier 53 EES HE

Kit meas. amplifier Pmag 53 CN EX

Kit meas. amplifier 53 CN HE Ex

Kit meas. amplifier Pmag 53 CN

Kit meas. amplifier 53 CN HE

Kit amp. 53, HART7, DE+FR+IT+ES+EN, EX

Kit amp. 53,HART7, DE+FR+IT+ES+EN, HE,EX

Kit amp. 53, HART7, DE+FR+IT+ES+EN

Kit amp. 53, HART7, DE+FR+IT+ES+EN, HE

Kit amp. 53, HART7, RU+NL+PT+CS+EN, EX

Kit amp. 53,HART7, RU+NL+PT+CS+EN, HE,EX

Kit amp. 53, HART7, RU+NL+PT+CS+EN

Kit amp. 53, HART7, RU+NL+PT+CS+EN, HE

Kit amp. 53, HART7, ZH+PL+ID+EN, EX

Kit amp. 53, HART7, ZH+PL+ID+EN, HE, EX

Kit amp. 53, HART7, ZH+PL+ID+EN

Kit amp. 53, HART7, ZH+PL+ID+EN, HE

Kit amp. 53, HART7, JA+SV+NO+FI+EN

Kit amp. 53, HART7, JA+SV+NO+FI+EN, HE

Kit commodul Iout passive/Frequency Exi

Kit I/O Iout passive/Frequency HE Exi

Kit commodul Iout active/Frequency Exi

Kit I/O Iout active/Frequency HE Exi

Kit commodul current/freq./2Relay Ex

Kit I/O current/frequency/2Relay HE EX

Kit com 53/55/83/93 curr./freq. out Ex

Kit I/O current/frequency out HE EX

Kit I/O Profibus PA Ex

Kit I/O 50/53/55/80/83 Profib. PA HE Ex

Kit I/O Foundation Fieldbus C02 Ex

Kit I/O Foundation Fieldbus C14 EX

Kit I/O Foundation Fieldbus HE C02 EX

Kit I/O Foundation Fieldbus HE C14 EX

Kit I/O 50/53/55/83/65/8ME Profib. DP Ex

Kit I/O 50/53/55/83 Profibus DP HE EX

Kit Com ModbusRS485+stat.In 2Interf.Ex

Kit I/O Modb.RS485+Stat.In 2Interf.HE EX
