Capacitance
Point level switch
Nivotester FTC325

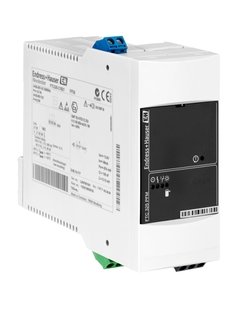

Nivotester FTC325 ©Endress+Hauser
Nivotester FTC325 ©Endress+Hauser

Point level switch with intrinsically safe signal circuit for connection to a capacitance sensor

The Nivotester FTC325 is a point level switch with intrinsically safe signal circuit for connection to a capacitance sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

please wait Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
Prodajna cena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Highest safety due to intrinsically safe signal circuit EEx ia IIC

    • Calibration using operating keys

    • High functional safety thanks to: FailSafe pulse-frequency modulation (PFM) or 3-wire technology, checkable relay function

    • Compact housing for easy series...

  • Področje uporabe

    For point level detection in tanks containing liquids and silos containing bulk solids. Also for capacitance level probes, which may be applied in hazardous areas of category ATEX II (1) GD. Overfill prevention for tanks containing flammable or non-...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Capacitive Liquid

  • Characteristic / Application

    Transmitter with intrinsically safe signal
    Calibrating using operating keys
    adjustable operating delay
    2-wire PFM
    3-wire
    Rail mounting:
    Wide: 45mm (PFM
    )Wide: 22,5 mm
    With adjustable hysteresis

  • Specialities

    Min / Max - changeover
    Test/correction key (PFM)

  • Supply / Communication

    85V ... 253V AC
    20V ... 60V DC

  • Ambient temperature

    Serial montage
    -20 °C ... 50 °C
    (-4 °F ... 122 °F)

  • Communication

    2 Relays

  • Certificates / Approvals

    ATEX, IEC Ex, FM, CSA, TIIS

  • Safety approvals

    Overfill protection WHG

  • Merilni princip

    Capacitive Solid

  • Characteristic / Application

    Transmitter with intrinsically safe signal
    Calibrating using operating keys
    adjustable operating delay
    2-wire PFM
    3-wire
    Rail mounting:
    Wide: 45mm (PFM
    )Wide: 22,5 mm
    With adjustable hysteresis

  • Specialities

    Min / Max - changeover
    Test/correction key (PFM)

  • Supply / Communication

    85V ... 253V AC
    20V ... 60V DC

  • Ambient temperature

    -20 °C ... 50 °C Serial montage
    (-4 °F ... 122 °F)

  • Communication

    2 Relays

  • Certificates / Approvals

    ATEX, IEC Ex, FM, CSA, TIIS

  • Safety approvals

    Overfill protection WHG
