Point level detection

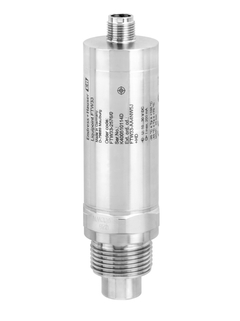

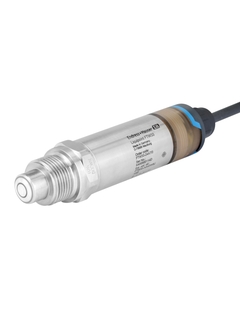

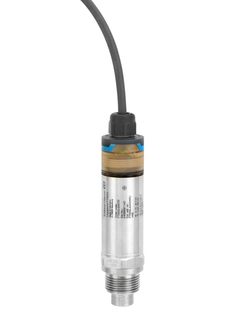

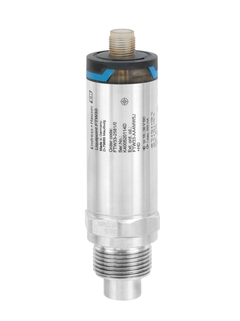

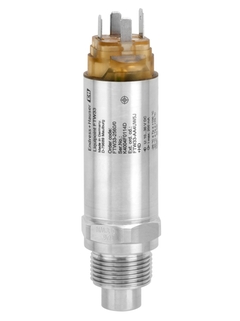

Liquipoint FTW33

Liquipoint FTW33 demonstration in different media

Very compact flush-mounted probe for liquid and pasty media

The Liquipoint FTW33 is developed for the food industry and meets all international hygiene requirements. The device also fits perfectly for applications in all industries. For use in pasty and sticky media and media with heavy build-up.
Advanced:
- Oil and water based fluids and sticky media

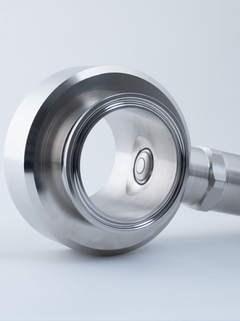

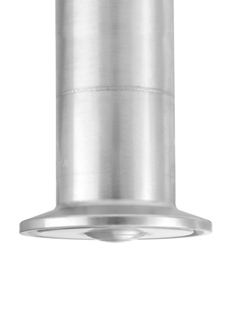

- Real flush-mounted
Reliable:
- Active build-up compensation
- Function check with test magnet
Easy:
- No calibration or adjustment required
- Plug & play without any specific tools
- IO-Link connectivity

Segment Fundamental

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Dimenzioniranje

Primerjava

Lastnosti na dlani
Process temperature

Standard:
-20 ... 100°C
Cleaning:
-20 ... 150°C for 1h
( -4 ... 302°F for 1h)

Process pressure absolute / max. overpressure limit

Vacuum ... 25 bar
(Vacuum ... 362,5 psi)

Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi

<%label%>
-- selected coding

-- selected label
<%label%>
Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

FTW33

Prikaži podrobnosti Skrij podrobnosti

Prikaži podrobnosti

Nazaj na hitro izbiro

<%feature%>

<%coding%>

<%label%>

Dodaj v voziček

Izbirni dodatki

Uporabite individualni konfigurator za nadaljevanje.

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi

Configure

Dodatne komponente

Commubox SFG10
Primerjava

Prednosti
Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes
Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and...

Prikaži več
Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes
Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems
Individual adjustment to each medium not necessary
Easy installation thanks to compact design, even in tight conditions or where access is restricted
Broad range of process connections for installation in new and existing plants
CIP and SIP cleanability ensured - up to protection class IP 69
LED display for on-site function check

Prikaži manj

Področje uporabe
For use in pipes and in storage, mixing and process vessels with or without an agitator. For liquids with electrical conductivity >1 μS/cm or dielectric constant >2. Developed for the food industry. Detection of foam occurring within the food industry...

Prikaži več
For use in pipes and in storage, mixing and process vessels with or without an agitator. For liquids with electrical conductivity >1 μS/cm or dielectric constant >2. Developed for the food industry. Detection of foam occurring within the food industry possible.

Process connections: Threads and hygiene connections

Sensor length: Flush-mounted

Temperature: -20 to +100°C (-4 to +212°F), CIP/SIP to 150°C (302°F) for 1 hour

Pressure: 0 to 25bar abs (0 to 362,5psi abs)

Hygienic certificates

Prikaži manj

Lastnosti in specifikacije

Nazaj

Podrobnosti

Merilni princip

Conductive
Characteristic / Application

Compact point level switch for using in pipes and in storage, mixing and process vessels with or without an agitator, for water based or oil based media, with active build up compensation,flush mounting
Specialities

CIP and SIP suitable

Conductive foam is detectable or can be switched off
Supply / Communication

10…30 V DC
Ambient temperature

-40 ... 70°C

(-40 ... 158°F)
Process temperature

Standard:
-20 ... 100°C

Cleaning:
-20 ... 150°C for 1h

( -4 ... 302°F for 1h)
Process pressure absolute / max. overpressure limit

Vacuum ... 25 bar

(Vacuum ... 362,5 psi)
Main wetted parts

Sensor: 316L

Sensor isolation: PEEK
Process connection

Thread G1, G1/2, G3/4, M24
Process connection hygienic

Clamp ISO 2852 1 to 1 1/2", 2",
DIN11851 Pipe union
Communication

DC PNP
Certificates / Approvals

CSA C/US
Design approvals

EN 10204-3.1
Hygienic approvals

3A, EHEDG
Options

Weld-in adapter,

Process adapter for hygienic process connections
