Conductive
Point level detection
One rod probe 11375Z

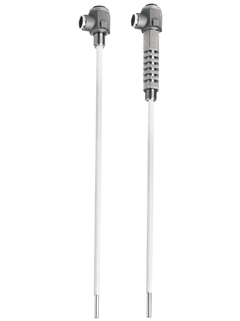

Probe 11375Z ©Endress+Hauser

Simple point level detection of conductive liquids with higher temperatures

The 11375Z is a cost-effective and reliable solution for conductive point level detection in process or storage tanks for all kinds of liquids.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Process temperature

      -40 °C ... 135 °C
      (-40 °F ... 275 °F)

    • Process pressure absolute / max. overpressure limit

      Vacuum ... 50 bar
      (Vacuum ... 725 psi)

    • Min. conductivity of medium

      20 µS/cm

please wait Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Long operating life and reliable function without wear since no moving parts in the tank

    • Cost-effective probe for conductive liquid

    • Probe can be shortened as required

    • Cooling adapter for higher fluid temperatures, as of 100°C

  • Področje uporabe

    For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0 or as pump protection in pipes and two-point control.

    • Process connection: Thread

    • ...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Conductive

  • Characteristic / Application

    One rod probe for high temperature and high pressure. corrosion resistant

  • Supply / Communication

    Relay

  • Ambient temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process temperature

    -40 °C ... 135 °C
    (-40 °F ... 275 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 50 bar
    (Vacuum ... 725 psi)

  • Min. conductivity of medium

    20 µS/cm

  • Main wetted parts

    PTFE, 316TI

  • Process connection

    G1/2

  • Sensor length

    0.05m ... 2m
    (2" ... 79")

  • Communication

    Relay

  • Certificates / Approvals

    ATEX

  • Components

    Transmitter: FTW325

  • Application limits

    observe min. medium conductivity
