Lastnosti na dlani
-
Process temperature
Non-contact installation: any
Within installation:
-20 °C ... +60 °C (-4 °F ... +140 °F)
With HT-Adapter:
up to +450 °C (+842 °F) -
Process pressure / max. overpressure limit
Non-contact installation: any
Within installation:
0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
With HP-Adapter:
up to +21 bar (+305 psi) abs. -
Min. density of medium
Solid weight: > 10 g/l
Področje uporabe

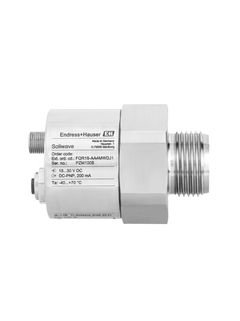

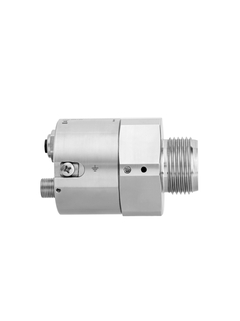

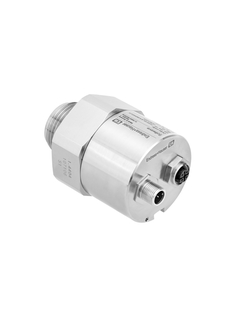

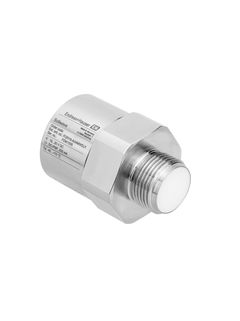

The Soliwave FQR16 is an ultra-compact transceiver for non-contact point level detection of bulk solids and liquids, as well as piece goods counting and object detection. The Soliwave FQR16 is used together with the FDR16. The microwave barrier works with a non-contact detection method and can also be used in applications with difficult-to-access or confined installation conditions due to its ultra-compact design. For non-metallic container materials, measurement from the outside is possible.

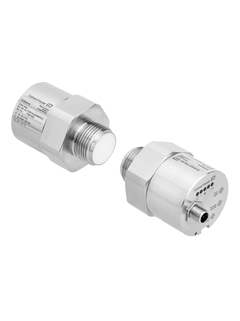

The microwave barrier Soliwave FDR16 and FQR16 detects minimum or maximum point levels of powdery to lumpy bulk solids and liquids, for example to protect against overflow and dry running. The device is also suitable for piece goods counting and object detection. The device can be used in multiple industries like primaries, energy and food.
Prednosti
Non-contact measuring principle - detection almost independent of process properties
High security - permanent self-diagnosis and full self-test
First microwave barrier with IP69 protection classification
Meets the requirements of EU 1935/2004
Very simple and cost-effective commissioning
Safe detection - non-contact measuring method guarantees wear-free and maintenance-free continuous operation
Robust design - housing made of stainless steel
