Radiometric level and
density measurement

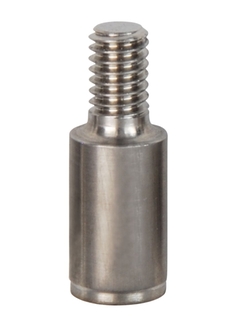

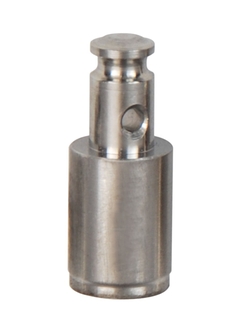

Gamma Source FSG61

Gamma Source FSG61 ©Endress+Hauser
Gamma Source FSG61 ©Endress+Hauser
  • Gamma Source FSG61
  • Gamma Source FSG61

Gamma radiation source (60Co) for radiometric level, point level, density and interface measurement

The Gamma Source FSG61 is specially suited for level applications with thick tank walls, high pressure or for density applications with big pipe diameters and large density ranges thanks to its high penetration energy.

Segment Xpert
  • F
  • L
  • E
  • X

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Process temperature

      Any

    • Process pressure absolute / max. overpressure limit

      Any

Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FSG61
Prikaži podrobnosti Skrij podrobnosti
Prikaži podrobnosti
Nazaj na hitro izbiro
  • <%feature%>
    <%coding%>
    <%label%>
pc
Nalaganje cene
Cene trenutno niso na voljo
from CHF 803.-
  • Izbirni dodatki
Uporabite individualni konfigurator za nadaljevanje.
ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi

  • Prednosti

    • Specially constructed source capsule conforms to strictest safety requirements:
      Typically class C66646 to ISO 2919

    • Point source in special source container ensures simple handling and easy installation

    • Choice of activity ensures optimized dosage for your...

  • Področje uporabe

    Radioactive isotopes are used as gamma radiation sources for continuous level, density and interface measurement as well as for point level detection. The radioactive source is mounted in a special source container which affords the necessary protection...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Radiometric Limit

  • Characteristic / Application

    Source
    Isotope: Cobalt 60
    Half-life: 5.3 years

  • Specialities

    Double seal
    Steel: 1.4541 (321 S 18)
    Classification: C66646 ISO 2919
    Activity calculation with
    Applicator

  • Ambient temperature

    -20 °C ... 250 °C
    (-4 °F ... 482 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Components

    Installed in source container

  • Merilni princip

    Radiometric

  • Characteristic / Application

    Source
    Isotope: Cobalt 60
    Half-life: 5.3 years

  • Specialities

    Double seal
    Steel: 1.4541 (321 S 18)
    Classification: C66646 ISO 2919
    Activity calculation with
    Applicator

  • Ambient temperature

    -20 °C ... 250 °C
    (-4 °F ... 482 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Components

    Installed in source container

  • Merilni princip

    Radiometric

  • Characteristic / Application

    Source
    Isotope: Cobalt 60
    Half-life: 5.3 years

  • Specialities

    Double seal
    Steel: 1.4541 (321 S 18)
    Classification: C66646 ISO 2919

  • Ambient temperature

    -20 °C ... 250 °C
    (-4 °F ... 482 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Components

    Installed in source container

  • Merilni princip

    Radiometric Limit

  • Characteristic / Application

    Source
    Isotope: Cobalt 60
    Half-life: 5.3 years

  • Specialities

    Double seal
    Steel: 1.4541 (321 S 18)
    Classification: C66646 ISO 2919
    Activity calculation with
    Applicator

  • Ambient temperature

    -20 °C ... 250 °C
    (-4 °F ... 482 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Components

    Installed in source container

  • Merilni princip

    Radiometric Density

  • Characteristic / Application

    Source
    Isotope: Cobalt 60
    Half-life: 5.3 years

  • Ambient temperature

    -20 °C ... 250 °C
    (-4 °F ... 482 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Specialities

    Double seal
    Steel: 1.4541 (321 S 18)
    Classification: C66646 ISO 2919
    Activity calculation with
    Applicator

Dokumenti / Priročniki / Softver

Pribor / Nadomestni deli

Št.
Kataloška koda
Specifikacija

Complete your measuring point with...

Nazaj

Transmitter

Gammapilot FMG60 - Radiometric level measurement

Radiometric
Level and density measurement
Gammapilot FMG60

The compact transmitter Gammapilot FMG60 is used in applications with extreme process conditions. Made for point level detection, continuous level, interface and density measurement.

Source Container

Source Container FQG60 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG60

FQG60 is a small-size, lightweight radiation source container with radiation source insert with manual switching on/off for radiometric measurement.

Source Container FQG61 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG61

FQG61 is a lightweight radiation source container with source holder for manual or pneumatic switching on/off for radiometric measurement.

Source Container FQG62 - Radiometric measurement

Radiometric
Level/density measurement
Source Container FQG62

FQG62 is a lightweight radiation source container with source holder for manual or pneumatic switching on/off for radiometric measurement.

Source Container FQG63 - Radiometric measurement

Radiometric
Interface measurement
Source Container FQG63

FQG63 is a lightweight radiation immersion type source container to place the source inside the process tank for radiometric measurement.

Source Container FQG66 - Radiometric measurement

Radiometric
Level and density
Source Container FQG66

Radiation source container FQG66 with sliding source support rod for manual or pneumatic switching on/off.
