Analog conductivity sensor

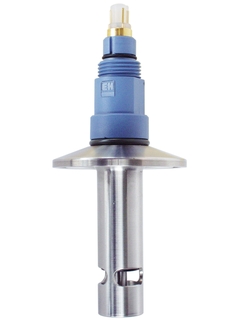

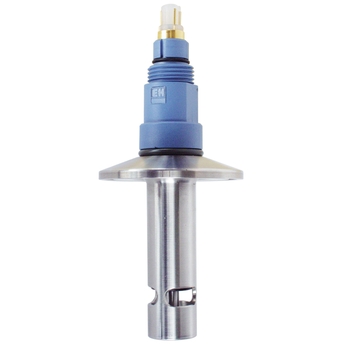

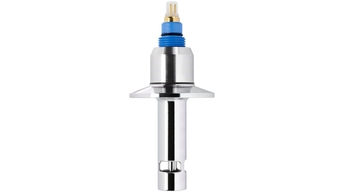

Condumax CLS16

Analog conductivity sensor Condumax CLS16 ©Endress+Hauser

The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Analog conductivity sensor Condumax CLS16

Conductive conductivity sensor for hygienic applications in pure and ultrapure water

Condumax CLS16 is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Measurement range

      k=0,1: 0,04µS/cm - 500µS/cm

    • Process temperature

      Max. 120°C (150°C/30 min)
      max. 248°F (302°F/30 min.)

    • Process pressure

      max. 12 bar at 20°C
      max.174 psi at 68°F

Hitra izbira

Izberite med predlaganimi možnostmi
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CLS16
Prikaži podrobnosti Skrij podrobnosti
Prikaži podrobnosti
Nazaj na hitro izbiro
  • <%feature%>
    <%coding%>
    <%label%>
pc
Nalaganje cene
Cene trenutno niso na voljo
from CHF 803.-
  • Izbirni dodatki
Uporabite individualni konfigurator za nadaljevanje.
ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi

Dodatne komponente

  • Prednosti

    • Highest precision and measuring accuracy

    • Hygienic design certified by EHEDG

    • Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials

    • Sterilizable

    • Quality certificate stating the individual cell constant

  • Področje uporabe

    Condumax CLS16 measures conductivity in pure and ultrapure water applications for the monitoring and control of:

    • Ion exchangers

    • Reverse osmosis

    • Distillation

    • Electro-deionizing

    • Water for injection (WFI)

    With its international explosion protection...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Conductive

  • Application

    Pharmaceuticals, pure and ultrapure water

  • Characteristic

    Hygienic 2-electrode conductivity sensor

  • Measurement range

    k=0,1: 0,04µS/cm - 500µS/cm

  • Measuring principle

    Conductive conductivity cell

  • Design

    Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished stainless steel and FDA sealing material; sterilizable

  • Material

    Isolation: PEEK
    Electrode: polished stainless steel 1.4435
    Sealing: Isolast (FFKM) FDA conform

  • Dimension

    Electrode diameter: 17 mm
    (0.66 inch)
    Electrode length: 54 mm
    ( 2.10 inch)

  • Process temperature

    Max. 120°C (150°C/30 min)
    max. 248°F (302°F/30 min.)

  • Process pressure

    max. 12 bar at 20°C
    max.174 psi at 68°F

  • Temperature sensor

    Integrated Pt100 or Pt1000

  • Ex certification

    ATEX

  • Connection

    Process connection: Varivent, Neumo, Clamp
    Cable: TOP68 connector or fixed cable

  • Ingres protection

    IP68

  • Additional certifications

    - calibration certification - surface roughness Ra<0,8 (0,4)- Material certification 3.1.B - EHEDG, pharma certificate of compliance
