Process assembly
Unifit CPA442

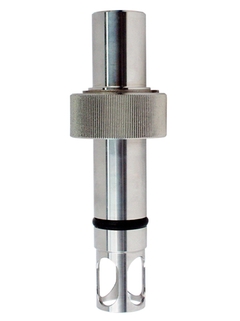

Unifit CPA442 - Hygienic assembly for pH/ORP sensors ©Endress+Hauser
Unifit CPA442 - Varivent version with inserted Memosens sensor ©Endress+Hauser

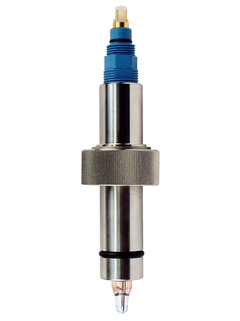

Unifit CPA442 with analog sensor inserted ©Endress+Hauser

Hygienic assembly for the life sciences, food & beverage industries

The Unifit CPA442 process assembly is the simple solution for pH/ORP or oxygen measurement in tanks and pipelines of hygienic and sterile applications. Unifit is designed for inline cleaning and sterilization according to EHEDG and 3A criteria. You can be absolutely sure that your high-quality products are never contaminated but always completely safe.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Process temperature

      max. 140°C
      (284°F)

    • Process pressure

      max. 10 bar
      (145 psi)

Hitra izbira

Izberite med predlaganimi možnostmi
Prodajna cena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Certified hygienic design: Complies with 3A standard 74-05 and the criteria of EHEDG Class I

    • No contamination thanks to leak-tight, built-in electrode seal (molded seal)

    • Electropolished surface prevents build-up of residues (Ra=0.38 µm or 0.76 µm)

    • Suitable...

  • Področje uporabe

    Unifit CPA442 is intended for permanent installation in tanks and pipework in:

    • Food and beverage

    • Life sciences

    • Water treatment

    • Chemicals

    It is suitable for use with pressures of up to 12 bar (stainless steel).

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Potentiometric

  • Application

    Process, food, pharmaceuticals

  • Installation

    Fixed installation assembly

  • Characteristic

    Open and closed tank, piping.

  • Design

    - Hygienic assembly with corresponding process connections - 120 mm electrodes - optional with protection guard - optional with leakage control

  • Material

    Holder: stainless steel sealing : different materials available (FDA conform)

  • Dimension

    10 - 86 mm
    (0.39 - 3.47 inch)

  • Process temperature

    max. 140°C
    (284°F)

  • Process pressure

    max. 10 bar
    (145 psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, Neumo Bi°Control.

  • Additional certifications

    - Material certification 3.1.B EN 10204- 3A / EHEDG (steam sterilisability + cleanability)- Surface roughness Ra<0,8 (0,4).

  • Merilni princip

    Amperometric oxygen measurement

  • Application

    Process, Food, Pharmaceuticals

  • Characteristic

    Open and closed tank, piping. Fixed installation assembly

  • Design

    - Hygienic holder with corresponding process connections.- Optional with protection guard- Optional with leakage control

  • Material

    Holder : Stainless steelSealing : different materials available (FDA conformable)

  • Dimension

    10 - 86mm
    (0.39 - 3.47inch)

  • Process temperature

    max. 140°C
    (284°F)

  • Process pressure

    max. 10bar
    (145psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, Neumo Bi°Control.

  • Additional certifications

    - Material certification 3.1.B EN 10204- 3A / EHEDG (steam sterilisability + cleanability)- Surface roughness Ra<0,8 (0,4).

  • Merilni princip

    Sensor ORP / Redox

  • Application

    Process, Food, Pharmaceuticals

  • Installation

    Fixed installation assembly

  • Characteristic

    Open and closed tank, piping.

  • Design

    - Hygienic holder with corresponding process connections.- 120mm electrodes- Optional with protection guard- Optional with leakage control

  • Material

    Holder : Stainless steelSealing : different materials available (FDA conformable)

  • Dimension

    10 - 86mm

  • Process temperature

    max. 140°C

  • Process pressure

    max. 10bar

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, Neumo Bi°Control.

  • Additional certifications

    - Material certification 3.1.B EN 10204- 3A / EHEDG (steam sterilisability + cleanability)
