RIA14
Loop-powered field indicator

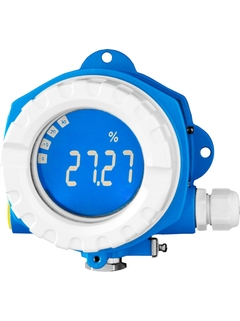

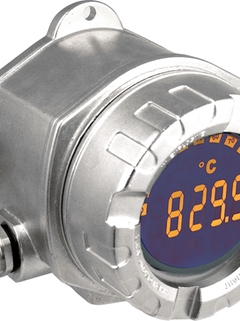

Loop-powered process indicator RIA14 for field installation

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!

The indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4...20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval.

Segment Fundamental

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Dimenzioniranje

Primerjava

Lastnosti na dlani
Input

1 x analogue 4...20 mA

Output

1 x open collector

Output

1 x open collector

Display

LCD 20 mm (0.79")
5-digit
Bargraph
Plain text display

Power Supply

Loop powered

Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi

<%label%>
-- selected coding

-- selected label
<%label%>
Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

RIA14

Prikaži podrobnosti Skrij podrobnosti

Prikaži podrobnosti

Nazaj na hitro izbiro

<%feature%>

<%coding%>

<%label%>

Dodaj v voziček

Izbirni dodatki

Uporabite individualni konfigurator za nadaljevanje.

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi

Configure

Dodatne komponente

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
HAW569
Surge arresters

Surge arresters for field mounting
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-

Prednosti
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with...

Prikaži več
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with FieldCare PC software; or configuration without power supply using setup box
International approvals; marine approval
Allows the HART^® transmission protocol to pass unimpeded

Prikaži manj

Področje uporabe
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open...

Prikaži več
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by means of a PC with the FieldCare PC software.

Prikaži manj

Lastnosti in specifikacije

Nazaj

Podrobnosti

Merilni princip

Display
Function

Display
Certification

UR C/US

CSA GP

ATEX Ex d

ATEX Staub

ATEX n

FM USA NI

FM USA DIP

FM USA XP

CSA NI

CSA DIP

CSA XP

Marine approval
Input

1 x analogue 4...20 mA
Output

1 x open collector
Auxiliary power supply / Loop power supply

Loop powered
Dimensions (wxhxd)

Field housing:

132 x 135 x 106 mm

(5.2" x 5.31" x 4.17")
Operation

3 keys interface on electronics + PC interface FieldCare
Display

LCD 20 mm (0.79")

5-digit

Bargraph

Plain text display

Prikaži več
Prikaži manj

Merilni princip

Loop powered indicators
Measuring principle

Loop-powered field indicator
Function

Display
Display

LCD 20 mm (0.79")

5-digit

Bargraph

Plain text display
Power Supply

Loop powered
Input

1 x analogue 4...20 mA
Output

1 x open collector
Output

1 x open collector
Software functions

Not defined
Certificates

UR C/US

CSA GP
ATEX Ex d
ATEX Staub
ATEX n
FM USA NI
FM USA DIP
FM USA XP
CSA NI
CSA DIP
CSA XP
Marine approval
EAC
SIL

Not defined
Panel mounting

field

Prikaži več
Prikaži manj

Dokumenti / Priročniki / Softver

Vrsta prenosa

Filter
