Lastnosti na dlani
-
Input
2 x analog 4...20 mA
-
Output
2 x analog 4...20 mA
Področje uporabe
The RB223 passive barrier can be used to galvanically isolate active signal circuits (0 to 20 mA) in three applications:
Transmission from non-Ex to Ex areas e.g for active adjusters, controllers or indicators,
Transmission from Ex to non-Ex areas for connection of active, intrinsically safe circuits to the PLC,
Transmission from Ex to non-Ex areas for supply of intrinsically safe transmitters with non-intrinsically safe transmitter power supply.
Separation of active 0/4 to 20 mA signals from transmitters, valves and adjusters.
Prednosti
Compact side-by-side housing for DIN rail
Space-saving one-channel and two-channel version
No power supply necessary
International Ex approvals; Can be used up to SIL 3
Bidirectional HART® transmission
Communication sockets for HART® + integrated HART® resistor for sensor configuration
Predhodnik
-
-
Tehnične informacije (TI)
RB223

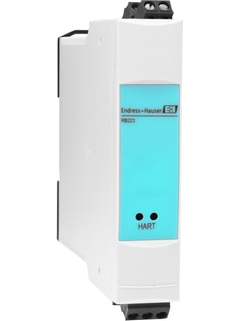

One- or two-channel passive barrier
