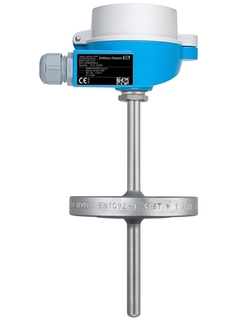

Product picture of thermocouple thermometer TC13

TC13
Modular TC thermometer

TC Thermometer, explosion-protected with thermowell and a variety of different flanges

TC13
Please Wait (spinning wheel)
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-

Lastnosti na dlani

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration
    t50 = 6 s
    t90 = 13 s

  • Max. process pressure (static)

    at 20 °C: 50 bar (725 psi)

  • Operating temperature range

    Type K:
    -40 °C ... 1.100 °C
    (-40 °F ...2.012 °F)
    Type J:
    -40 °C ...750 °C
    (-40 °F ...1.382 °F)

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

Področje uporabe

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

  • Universal range of application

  • Measuring range: -40 to 1100 °C (-40 to 2012 °F)

  • Pressure range up to 100 bar (1450 psi)

  • Degree of protection: up to IP68

Prednosti

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • Fast response time with reduced/tapered tip form

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), non-sparking (Ex nA)

  • Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™

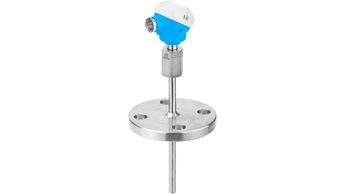

Predhodnik
