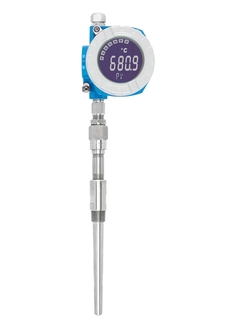

Product picture of TC thermometer TMT162C with field transmitter

TMT162C
TC Thermometer, field transmitter,display

Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry

TMT162C
Please Wait (spinning wheel)
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-

Lastnosti na dlani

  • Accuracy

    class 1 acc. to IEC 60584
    class 2 acc. to IEC 60584

  • Response time

    depending on configuration
    t50 = 3 s
    t90 = 7 s

  • Max. process pressure (static)

    up to 20 °C: 480 bar (6.962 psi)

  • Operating temperature range

    Type K:
    -40 °C ...800 °C
    (-40 °F ...1.472 °F)
    Type J:
    -40 °C ...750 °C
    (-40 °F ...1.382 °F)

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

Področje uporabe

The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.

  • Chemical/pharmaceutical industry

  • Petrochemical industry

  • Energy industry

  • Paper industry

  • General industrial applications

The TMT162C thermocouple thermometer comprises a measuring insert with a type J or K thermocouple and an electronic field transmitter with HART®, FOUNDATION Fieldbus or PROFIBUS® PA protocol.

Prednosti

  • Dual compartment housing

  • Backlit display with large measured value, bar graph and fault condition indication

  • Galvanic isolation 2 kV (sensor input to the output)

  • Wide range of threaded thermowell connections available as standard

  • Replaceable measuring insert comprising a mineral insulated tube (SS 316L/1.4404)

  • Approvals for hazardous areas: Flameproof enclosure (Ex d), Intrinsic safety (Ex ia), Non-sparking (Ex nA)

  • Aluminum or stainless steel housing, degree of protection IP67, NEMA 4x
