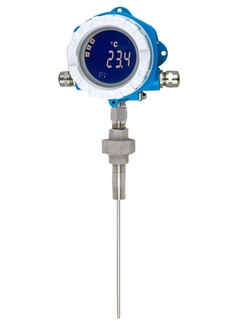

TMT142C
TC Thermometer, fieldtransmitter, display
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. The thermometer fulfills the corresponding safety requirements due to various certificates and tests. The use of a transmitter leads to higher accuracy and reliability in comparison to directly wired sensors.
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
Lastnosti na dlani
-
Accuracy
class 1 acc. to IEC 60584
class 2 acc. to IEC 60584 -
Response time
depending on configuration
t50 = 3 s
t90 = 7 s -
Max. process pressure (static)
depending on thermowell
-
Operating temperature range
Type K:
-40 °C ...800 °C
(-40 °F ...1.472 °F)
Type J:
-40 °C ... 750 °C
(-40 °F ...1.382 °F) -
Max. immersion length on request
up to 30.000,00 mm (1.181,10'')
-
Hitra izbira
Individualna konfiguracija
-
Prednosti
Dual compartment housing
Backlit display with large measured value, bar graph and fault condition indication
Galvanic isolation 2 kV (sensor input to the output)
Wide range of threaded thermowell connections available as standard
Replaceable measuring...
-
Področje uporabe
The temperature assembly TMT142C is a compact thermometer specifically designed to fulfill the requirements of different process industries such as the chemical, petrochemical and energy but even suitable to other general purpose applications.
The...
Dokumenti / Priročniki / Softver
-
Technical information TMT142C
Technical information compact thermometer TMT142C, Omnigrad S
Technical Information (TI) -
iTEMP TMT142B
Temperature field Transmitter with HART® Communication and Bluetooth®
interfaceShort Instruction (KA)07/20angleščina -
Omnigrad S RTD and TC Thermometer with display
TMT162R/C, TMT142R/C
ATEX II 3G
Safety Instructions
Temperature field transmitter, ATEX Safety instructions
Ex Safety Instructions (XA) -
TMT142R, TMT142C
RTD and TC Thermometer with display
0Ех ia IIC T6…T1 Ga Х
Ga/Gb Ex ia IIC T6...T1 X
Ex ia IIIC T85 °C...T450 °C Da/Db XEx Safety Instructions (XA) -
TMT142R, TMT142C
RTD and TC Thermometer with display
1Ex d IIC T6...T1 Gb X
Ex tb IIIC 85 °C....450 °C Db X
Ga/Gb Ex d IIC T6...T1 X
Ex ta/tb IIIC 85 °C...450 °C Da/Db XEx Safety Instructions (XA) -
Omnigrad S RTD and TC Thermometer with display
TMT142R, TMT142C
ATEX:
Ex d IIC T6...T1 Ga/Gb
Ex tb IIIC T85 °C...T450 °C Da/Db
Safety Instructions
Temperature field transmitter, ATEX Safety instructions
Ex Safety Instructions (XA) -
TMT142R, TMT142C
RTD / Thermocouple assembly with field transmitters
ATEX Installation types
II2G Ex d IIC T6…T4 Gb
II1G Ex ia IIC T6…T1 Ga
Safety instructionsEx Safety Instructions (XA) -
Omnigrad S RTD and TC Thermometer with display
TMT142R, TMT142C
ATEX:
Ex ia IIC T6...T1 Ga
Ex ia IIIC T85 °C...T450 °C Da/Db
Safety Instructions
Temperature field transmitter, ATEX Safety instructions
Ex Safety Instructions (XA) -
Omnigrad S RTD and TC Thermometer with display
TMT142R, TMT142C
ATEX Ex ia IIC T6…T1 Ga
Safety Instructions
Temperature field transmitter, ATEX Safety instructions
Ex Safety Instructions (XA) -
Mesure de température
Capteurs et transmetteurs pour les industries de process
Fields of Activities (FA)12/19fr -
温度测量
过程工业用温度传感器和温度变送器
Fields of Activities (FA)12/14kitajščina -
Pomiar temperatury
Czujniki i przetworniki pomiarowe
do kontroli przemysłowych procesów technologicznychFields of Activities (FA)10/14poljščina -
Измерение температуры
Датчики температуры и преобразователи для любых
отраслей промышленности.Fields of Activities (FA)06/13ruščina -
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
Fields of Activities (FA)04/18španščina -
Misura della temperatura
Termometri e trasmettitori
per l'industria di processoFields of Activities (FA)04/18italijanščina -
Field of activities FA Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)03/13angleščina -
Sıcaklık Ölçümü
Proses endüstrisi için termometreler ve transmiterler
Fields of Activities (FA)03/13turščina -
Temperaturmesstechnik
Thermometer und Transmitter für die Prozessindustrie
Fields of Activities (FA)02/20nemščina -
Temperature measurement
Thermometers and transmitters for the process industry
Fields of Activities (FA)02/20angleščina -
Измерение температуры
Ключевые особенности термометров Endress+Hauser для нефтегазовой отрасли
Competence Brochure (CP)08/11ruščina -
Инженерные решения по термометрии
Специальные решения по термометрии для химической и
нефтеперерабатывающей промышленностиCompetence Brochure (CP)04/10ruščina -
EDD Single, PDM_HART_TE_iTEMP_TMT142_0x00CB_0x02_0x04, 03.10.2019 (Temperature, iTEMP, 0x00CB)
HART,
PDM Version: 8.2.1, 9.1.0.4Electronic Data Description (EDD)1.00.00Jezikovno neodvisno -
DTM Single, ITEMP_TMT142_V1_03_xx, 26.10.2020 (Temperature, iTEMP, 0x00CB)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.4.188.39Jezikovno neodvisno -
Faceplate Library, PRM_HART_Package_Temp_1_08_00, 03.12.2015 (Temperature)
HART,
Plant Resource Manager Version: R3.05, R3.11Faceplate1.08.00Jezikovno neodvisno -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-, TMT162C-, TMT162R-
Declaration Number: EC_00330_01.16EU Declarationnemščina , angleščina , fr -
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Product Code: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Declaration Number: EC_00568_01.17EU Declarationnemščina , angleščina , fr -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-
Declaration Number: EC_00173_01.16EU Declarationnemščina , angleščina , fr -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-, TMT162C-, TMT162R-
Declaration Number: EC_00185_01.16EU Declarationnemščina , angleščina , fr -
DIN Rail Transmitter, Field transmitter, head transmitters, Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT82-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC BY_112 11.01. TP020 003 126Miscellaneousruščina -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-, TMT162C-, TMT162R-
Region/Country: China
Approval Agency: ACMA
Approval Number: MD-17030A/09/ENMiscellaneousangleščina -
DIN Rail Transmitter, Process TC Heavy duty, Field transmitter, head transmitters, RTD-thermometer, Process RTD Heavy duty, process displays, power supply and barrier, contactors / transmitters
Product Code: TMT85-, TMT162R-, TMT162C-, TMT162-, TMT82-, TMT84-, TMT80-, TMT188-, TMT187-, TMT182-, TMT181-, TMT180-, TMT142-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TTR35-, TTR31-, TMT142R-, TMT142C-, TMR31-, TMR35-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AG95.B.00650Miscellaneousruščina -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT162R-, TMT162C-, TMT142R-, TMT142C-
Region/Country: South Korea
Approval Agency: KOSHA
Protection: Ex d IIC T6...T4Explosion Protection -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT162R-, TMT162C-, TMT142R-, TMT142C-
Region/Country: South Korea
Approval Agency: KOSHA
Protection: Ex ia IIC T6...T4Explosion Protection -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-, TMT162C-, TMT162R-
Protection: Ex d IIC T6...T1 Ga/Gb, Ex d IIC T6...T1 Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC T6...T1 Da/Db, Ex tb IIIC T6...T1 Db, Ex ta/tb IIIC T6...T1 Da/DbExplosion Protectionruščina -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT142R-, TMT162C-, TMT162R-
Region/Country: Europe (ATEX)
Approval Agency: KEMA
Category: II 1 G, II 1/2 G, II 1/2 D, II 2 G, II 2 D
Protection: Ex d IIC T6...T1 Gb, Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIC T450°C Da/Db, Ex tb IIC T450°C Db, Ex ta/tb IIC T450°C Da/Db, Ex d IIC T6...T1 Ga/GbExplosion Protectionnemščina , angleščina -
Process RTD Heavy duty, Process TC Heavy duty
Product Code: TMT142C-, TMT162R-, TMT162C-, TMT142R-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: IT.C.32.004.A_62156/1Metrologyruščina
Pribor / Nadomestni deli
-
-
Št. 6 Kataloška koda 71439499
O-Ring 88x3 HNBR 70° Shore PTFE-coated
-
Št. 6 Kataloška koda 71439489
O-Ring D18,77x1,78 HNBR 70° Shore coated
-
-
-
Št. 5 Kataloška koda TMT142X-HH
Housing cover blind, Alu Ex d FM XP without O-ring CSA XP only as cover of terminal part
-
Št. 5 Kataloška koda TMT142X-HI
Housing cover blind, Alu + O-ring
-
Št. 5 Kataloška koda TMT142X-HK
Housing cover cpl. for display, Alu Ex d + O-ring
-
Št. 5 Kataloška koda TMT142X-HL
Housing cover cpl. for display, Alu + O-ring
-
-
-
Št. 7 Kataloška koda 51004948
-
-
-
Št. 2+3 Kataloška koda TMT142X-DA
Display HART5 + fitting kit + twist protection
-
Št. 2+3 Kataloška koda TMT142X-DC
Display fitting kit + twist protection
-
-
-
Št. 8 Kataloška koda 51004387
Adapter NPT1/2/M20x1.5 cable entry
-
Št. 8 Kataloška koda 51004915
Adapter M20x1.5 exter./M24x1.5 intern.VA
-
Št. 8 Kataloška koda 51004949
Cable entry M20x1.5
-
Št. 8 Kataloška koda 51006845
Cable gland NPT1/2, D4.5-8.5 IP68
-
-
-
Kataloška koda 51007995
Mounting bracket SS316L, tube 1,5-3"
-
-
-
Št. 2 Kataloška koda 71310423
-
-
-
Št. 9 Kataloška koda 51004489
Blanks (blind) M20x1.5 EEx-d/XP
-
Št. 9 Kataloška koda 51004490
Blanks (blind) NPT1/2, 3.1655.53
-
Št. 9 Kataloška koda 51004916
Blanks (blind) G1/2" Ex-d/XP
-
Št. 9 Kataloška koda 51006888
Blanks (blind) 1/2NPT V4A
-
-
-
Kataloška koda 51007995
Mounting bracket SS316L, tube 1,5-3"
-
Kataloška koda TEC300-
Insert TEC300
Replaceable Insert (MgO). Connection to EEx d head with 1/2NPT.
-
-
-
Št. 4 Kataloška koda TMT142E-
Electronic TMT142E
-
-
-
Kataloška koda FXA195-
Commubox FXA195
Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.
-
-
-
Št. 1 Kataloška koda TMT142G-
Housing TMT142G
-
