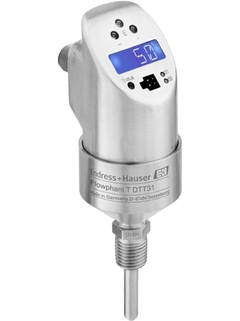

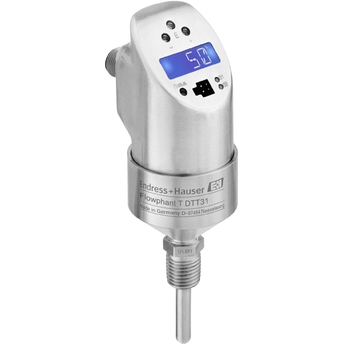

Flowphant T DTT31
Flow switch

Safe monitoring of flow rates and temperature in industrial processes. Compact and cost-saving.

The switch is designed for the safe measurement, display and monitoring of relative mass flow rates of liquid media with practically no pressure loss. It can be selected between one or two switch outputs as well as one switch output and one standardized analog output for flow rates or temperature values. Typical applications are: Monitoring cooling water circulation processes or lubrication systems of pumps and heat exchangers or leak monitoring in process lines.

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Dimenzioniranje

Primerjava

Lastnosti na dlani
Max. measurement error

2% - 10% (per measurement range)

Medium temperature range

-20...+85°C
(-4...+185°F)
CIP-able to 130°C / 266°F

Max. process pressure

120 bar (1.740 psi)

Hitra izbira

Izberite med predlaganimi možnostmi

<%label%>
-- selected coding

-- selected label
<%label%>
Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Želite več možnosti? Uporabite individualni konfigurator za nadaljevanje.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

DTT31

Prikaži podrobnosti Skrij podrobnosti

Prikaži podrobnosti

Nazaj na hitro izbiro

<%feature%>

<%coding%>

<%label%>

Dodaj v voziček

Izbirni dodatki

Uporabite individualni konfigurator za nadaljevanje.

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi

Configure

Dodatne komponente

F

L

E

X
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-
F

L

E

X
RIA46
Field meter with control unit

Multifunctional field meter for monitoring and indication of analog measured values
Več informacij
Primerjava
Nalaganje cene

Cene trenutno niso na voljo

Cena po prijavi

from CHF 803.-

Prednosti
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings
Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage
...

Prikaži več
Practically no pressure loss
Configuration software FieldCare for quick configuration and reliable storage of device settings
Optional: second switch output or 4 to 20 mA analog output for temperature monitoring or for outputting the flow as a percentage
Function check and process information onsite thanks to digital display at device
Top housing section which can be rotated 310° and rotatable display make it possible to read the measured values in all orientations

Marine approval

Prikaži manj

Področje uporabe
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT31 − with thread connections or coupling.

Application examples:
Monitoring cooling water circulation...

Prikaži več
Flow switch for monitoring and displaying relative mass flow rates of liquid media in the range from 0.03 to 3 m/s (0.1 to 9.84 ft/s). Flowphant T DTT31 − with thread connections or coupling.

Application examples:
Monitoring cooling water circulation systems of pumps, turbines, compressors and heat exchangers
Leak monitoring in process lines
Monitoring pump functionality
Monitoring lubrication systems
Filter monitoring in the beverage industry

Prikaži manj

Lastnosti in specifikacije

Nazaj

Podrobnosti

Merilni princip

Thermal
Product headline

Flow switch for liquid applications, intelligent / programmable; insertion style
Nominal diameter range

DN 25...1000
1"...40"
Max. measurement error

2% - 10% (per measurement range)
Max. process pressure

120 bar (1.740 psi)
Medium temperature range

-20...+85°C
(-4...+185°F)
CIP-able to 130°C / 266°F
Degree of protection

IP66
Display/Operation

LED
LCD-Display
Outputs

1 x PNP switchable output + 1 x 4...20 mA analog output

Prikaži več
Prikaži manj

Dokumenti / Priročniki / Softver

Vrsta prenosa

Filter

Flowphant T DTT31, DTT35 Technical Information
Flow switch for the safe and reliable monitoring of mass flow rates and
temperature in industrial processes

Technical Information (TI)
Operating Instructions Flow switch Flowphant T DTT31, DTT35
Flow switch for safe measurement and monitoring of mass flow and
temperature in industrial processes

Operating Instruction (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Operating Instruction (BA)
Flowphant T DTT31, DTT35 Operating Instructions
Flow switch

Operating Instruction (BA)
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for
compressed air, gas, steam and water

Competence Brochure (CP)

12/10

angleščina
Catálogo soluciones esenciales
Alta calidad a precios competitivos

Competence Brochure (CP)

01/17

španščina
Aluminium Laufen AG Intelligente Wärmerückgewinnung
Um Prozesswärme optimal zu nutzen und damit die Energieeffizienz zu
steigern, entwickelte Endress+Hauser gemeinsam mit Aluminium Laufen
AG ein modernes Steuerungskonzept.

Case Studies (CS)

06/13

nemščina
Aluminium Laufen AG Intelligent heat recovery
In order to optimise the use of process heat and to increase energy
efficiency, Endress+Hauser developed jointly with Aluminium Laufen
AG a modern control concept.

Case Studies (CS)

06/13

angleščina
E-direct Produktcatalogus 2018-2019
High quality, low price

Endress+Hauser Catalogues (EC)

10/18

nizozemščina
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !

Endress+Hauser Catalogues (EC)

09/19

fr
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!

Endress+Hauser Catalogues (EC)

06/20

nemščina
Flowphant DTT 31
Thermischer Durchflussschalter zur Überwachung von Flüssigkeiten

Tender Text

12/12

nemščina
Magphant
Product Code: DTT31-
Declaration Number: HE_00470_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

angleščina
RTD-thermometer, Process TC Heavy duty, Process TC General purpose, Process TC Explosion proof, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Explosion proof, Process RTD direct in contact, Process RTD Direct contact, Plugs RTD direct contact, Magphant, Low cost RTD General purpose, Industrial Modular Thermometer
Product Code: TR15-, TR13-, TR12-, TR11-, TR10-, TMT470L-, TMT162R-, TMT162C-, TMT142R-, TMT142C-, TMR35L-, TMR35-, TMR31L-, TMR31-, TM411-, TM401-, TH56-, TH55-, TH54-, TH53-, TH52-, TH51-, TR24-, TTR35-, TTR31-, TST90-, TST602-, TST487-, TST434-, TST41N-, TST414-, TST410-, TST40N-, TST310-, TST187-, TSM487-, TSM187-, TSC310-, TR88-, TR66-, TR65-, TR63-, TR62-, TR61-, TR25-, TH27-, T55-, T54-, T53-, T15-, T14-, T13-, OTR96-, OTR95-, OTR94-, OTR93-, OTR92-, OTR91-, OTR90-, OTR35-, OTR31-, MLTTS01-, MLTTS00-, GPTL-, DTT35L-, DTT35-, DTT31L-, DTT31-, TAF11-, TH18-, TH17-, TH15-, TH14-, TH13-, TH12-, TH11-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, TAF16-, TAF12T-, TAF12S-, TAF12D-
Declaration Number: EC_00568_01.17

EU Declaration

nemščina , angleščina , fr
Magphant
Product Code: DTT31-, DTT35-
Declaration Number: EC_00351_01.16

EU Declaration

nemščina , angleščina , fr
Product Family: Magphant
Product Code: DTT35-, DTT31-

EU Declaration

nemščina , angleščina , fr
Magphant
Product Code: DTT31-, DTT35-
Region/Country: China
Approval Agency: ACMA
Approval Number: MD-17031A/09/EN

Miscellaneous

angleščina
t-mass T, Prowirl R, Prowirl O, Prowirl F, T-MASS I, T-MASS F, t-mass B, t-mass A, t-mass, Prowirl D, PROSONIC FLOW P, Prosonic Flow G, PROSONIC FLOW E, Prosonic Flow 93, Prosonic Flow B, Prosonic Flow 92, Prosonic Flow 91, PICOMAG, Magphant, Dosimass, Promass 40, Promag D
Product Code: 92F-, ODMA-, 7R2B-, 7F2B-, 93P-, 93W-, 7O2B-, 7D2B-, 7O2C-, 7F2C-, 7R2C-, 65I-, 93C-, 7D2C-, 65F-, 93TA1-, 9B2B-, 9E1B-, 9EHB-, 9G3B-, 9G5B-, 9P5B-, DMA-, DTI200-, DTT31-, DTT35-, DTT35L-, DTT31L-, 91W-, 8E-, 6TAB-, 6I5B-, 6I3B-, 6F5B-, 6F3B-, 6BAB-, 6AAB-, 5D4C-, 40E-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: EACE N RU-D.CH.AD07.B.02246/20

Miscellaneous

ruščina
Product Family: Magphant
Product Code: DTT31-
Region/Country: Italy
Approval Agency: CETENA

Miscellaneous

angleščina , italijanščina
Dosimag, Dosimass, Magphant
Product Code: DTI200-, DTT31-, DTT35-, DTT35L-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC RU D-CH.AZ01.B.01169

Miscellaneous

ruščina
Magphant
Product Code: DTT31-
Region/Country: South Korea
Approval Agency: KR

Marine

angleščina
Magphant
Product Code: DTT31-
Region/Country: International
Approval Agency: RINA

Marine

angleščina
Magphant
Product Code: DTT31-
Region/Country: International
Approval Agency: DNVGL

Marine

angleščina

Prikaži več
Prikaži manj

Pribor / Nadomestni deli

Iskanje

Filter

Št.

Kataloška koda

Specifikacija

- Kataloška koda

  The unit is not repairable

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 51516983

  Commubox FXA291 (Hardware)

  Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 60001328

  Gasket DIN7603 A CU 21x26x1.5

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 51004751

  Collar welding boss d6 PEEK + screw

  moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 51004752

  Collar welding boss d6 PEEK w/o screw

  moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 51005148

  Cable M12x1 l=5m

  5m cable 4x 0.34 mm2, molded PVC angled connector, M12x1 connector screw Cu Sn/Ni, IP67.

  Prikaži podrobnosti Prikaži manj
- Kataloška koda 51006327

  M12 elbow plug ready for cable, IP67,PG7

  Prikaži podrobnosti Prikaži manj
- Kataloška koda TTR31X-AA

  Rubber cap for interface terminal Contains 5 pieces

  Prikaži podrobnosti Prikaži manj
- Kataloška koda TA50-

  Compression Fitting TA50

  Screw in.

  Prikaži podrobnosti Prikaži manj
- Kataloška koda TXU10-

  Configuration kit TXU10-

  for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

  Prikaži podrobnosti Prikaži manj
