Lastnosti na dlani
-
Input
One channel transmitter
-
Output / communication
4 to 20 mA
-
Ingress protection
IP67, IP68, NEMA Type 6
Področje uporabe

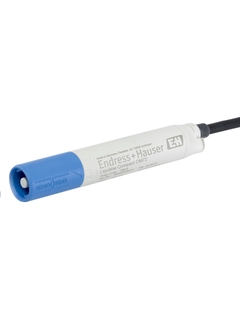

The Liquiline Compact CM72 is a small transmitter for Memosens sensors. It is the right choice for you if installation space is limited and you don't need the flexibility of a multiparameter device. Together with the sensor, it fits into most assemblies and couldn't be easier to install. The measuring parameter and measuring range are already defined during the ordering process, making the CM72 immediately ready for use with a high degree of safety against operating errors.
Liquiline Compact CM72 can be used in all industries and their utilities and supports all sensors with the blue Memosens plug-in head:
pH sensors
ORP sensors
Conductivity sensors
Oxygen sensors
The measurement parameter and range are specified when ordering and can not be changed afterwards.
The 2-wire device features the following interface:
4...20 mA
With its international explosion protection approvals, such as IECEx, ATEX, and CSA, CM72 is suitable for hazardous area use.
Prednosti
Space-saving installation:
The two-wire device fits inside an assembly and does not require its own power supply.Fast start-up:
Thanks to its fixed configuration, the CM72 does not have to be commissioned and can quickly start its work.Benefit from all the advantages of Memosens technology:
Memosens sensors offer you the safest data transmission, the highest measured value availability and total ease of use.On-site diagnostics:
The status of the transmitter and the connected sensor are indicated with a red/green LED.Suitable for all locations:
Whether your measuring point is exposed to dust, vapor, rain, snow, heat or cold, the CM72 will always be exactly the right transmitter for you.
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Segment Fundamental
-
Enostavni produkti
- Lahka izbira, vgradnja in uporaba
Tehnična odličnost
Preprostost
-
-
Tehnične informacije (TI)
Liquiline Compact CM72
Single-parameter transmitter for Memosens sensors
EN SL 21/02/202330/08/202131/05/2018Jezik:
angleščina
Verzija:
21/02/2023
Velikost datoteke:
988 KB
Ime datoteke:
TI01409CEN_0322-00.pdf
-
-
-
Navodila za uporabo (BA)
Junction Box Operating Instructions
Junction Box
EN SL 30/04/2018Jezik:
angleščina
Verzija:
30/04/2018
Velikost datoteke:
638.6 KB
Ime datoteke:
BA01802CA2_0118.pdf
-
-
-
Navodila za uporabo (BA)
Liquiline Compact CM72
Compact single-parameter transmitter for Memosens sensors
EN SL 14/11/202215/10/202030/04/2018Jezik:
angleščina
Verzija:
14/11/2022
Velikost datoteke:
699.6 KB
Ime datoteke:
BA01797CEN_0322-00.pdf
-
-
-
Kratka navodila (KA)
Liquiline Compact CM72
Kompaktni enoparametrski merilni pretvornik za senzorje Memosens
EN SL 22/07/202129/02/202030/04/2018Jezik:
slovenščina
Verzija:
22/07/2021
Velikost datoteke:
490.9 KB
Ime datoteke:
KA01354CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Liquiline CM82 and CM72
UK Ex II 1G Ex ia IIC T6/T4 Ga
Jezik:
angleščina
Verzija:
28/11/2022
Velikost datoteke:
498.2 KB
Ime datoteke:
XA02757CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Liquiline CM82 and CM72
Supplement to:
BA01797C and BA01845C
Safety instructions for electrical apparatus for explosion-hazardous
areas
EN SL 02/08/202406/11/2020Jezik:
angleščina
Verzija:
02/08/2024
Velikost datoteke:
3.3 MB
Ime datoteke:
XA02275CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
Liquiline CM82 in CM72
Dodatek k dokumentaciji:
BA01797C in BA01845C
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjih
EN SL 08/02/2020Jezik:
slovenščina
Verzija:
08/02/2020
Velikost datoteke:
3.9 MB
Ime datoteke:
XA01948CSL_0119.pdf
-
-
-
Ex varnostna navodila (XA)
Liquiline CM82 and CM72
Supplement to:
BA01797C and BA01845C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EN SL 06/11/2020Jezik:
angleščina
Verzija:
06/11/2020
Velikost datoteke:
3.1 MB
Ime datoteke:
XA02274CEN_0120.pdf
-
-
-
Ex varnostna navodila (XA)
Liquiline CM82 and CM72
Supplement to:
BA01797C and BA01845C
Safety instructions for electrical apparatus in explosion-hazardous
areas
JPN Ex ia IIC T4/T6 GaEN SL 09/02/202206/11/2020Jezik:
angleščina
Verzija:
09/02/2022
Velikost datoteke:
428.5 KB
Ime datoteke:
XA02276CEN_0221-00.pdf
-
-
-
Področja dejavnosti (FA)
Sensors, transmitters, compact devices and assemblies
Experts in Liquid Analysis
Jezik:
angleščina
Verzija:
24/09/2024
Velikost datoteke:
4.2 MB
Ime datoteke:
FA00007CEN_Analyse_21.24_LowRes.pdf
-
