Lastnosti na dlani
-
Measuring range
k=0,01: 0.04 to 20 µS/cm
k=0,1: 0.10 to 200 µS/cm -
Process temperature
Threaded with fixed cable:
-20 to 100 °C (-4 to 212 °F)
Threaded with plug-in head:
-20 to 120 °C (-4 to 248 °F)
Sterilization: max. 140 °C (284 °F) for 30 minutes -
Process pressure
13 bar at 20 °C (188 psi at 68 °F) absolute
2 bar at 120 °C (14 psi at 248 °F) absolute
Področje uporabe

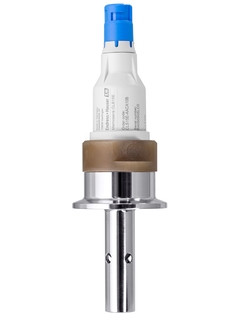

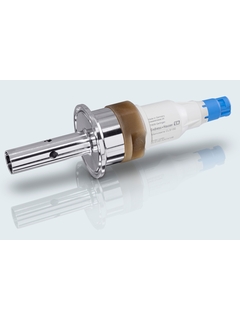

Memosens CLS15E is perfectly suited for conductivity measurement in applications with low measuring ranges such as boiler feedwater and chip cleaning. The contacting conductivity sensor performs reliably and accurately even in hazardous areas. CLS15E features Memosens 2.0 digital technology, offering extended storage of calibration, adjustment and process data. It facilitates predictive maintenance and provides the perfect basis for IIoT services.
Memosens CLS15E measures conductivity in pure and ultrapure water applications for the monitoring and control of:
Boiler feedwater
Ion exchangers
Reverse osmosis
Cooling water
Distillation
Chip cleaning
The digital sensor can be used in power plants for:
Degassed conductivity
pH measurement with differential conductivity
With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Prednosti
Designed for low maintenance and a long operating life, the sensor offers best value for money.
The sensor is sterilizable and autoclavable, allowing for installation in sterile plants.
-
Thanks to its electrode geometry, Memosens CLS15E provides reliable and accurate measured values at low conductivities.
A quality certificate stating the individual cell constant enables perfect adjustment of the measuring point.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Non-contact inductive signal transmission ensures maximum process safety.
Videoposnetki
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
Predhodnik
-
-
Tehnične informacije (TI)
Memosens CLS15E
Angleška različica - 02/2021
Digital conductivity sensor with Memosens 2.0 technology
EN SL 24/02/2021Jezik:
angleščina
Verzija:
24/02/2021
Velikost datoteke:
854.6 KB
Ime datoteke:
TI01526CEN_0120.pdf
-
-
-
Tehnične informacije (TI)
Memosens CLS15E
Digital conductivity sensor with Memosens 2.0 technology
EN SL 24/02/2021Jezik:
angleščina
Verzija:
24/02/2021
Velikost datoteke:
854.6 KB
Ime datoteke:
TI01526CEN_0120.pdf
-
-
-
Navodila za uporabo (BA)
Memosens CLS15E
Senzor el. prevodnosti s protokolom Memosens
EN SL 01/06/202224/02/2021Jezik:
slovenščina
Verzija:
01/06/2022
Velikost datoteke:
528.7 KB
Ime datoteke:
BA02018CSL_0222-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digital conductivity sensors with Memosens technology
INMETRO Ex ia IIC T3/T4/T6 GaEN SL 04/11/202423/11/2020Jezik:
angleščina
Verzija:
04/11/2024
Velikost datoteke:
502.8 KB
Ime datoteke:
XA02078CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digital conductivity sensors with Memosens technology
NEPSI Ex ia IIC T3/T4/T6 GaEN SL 08/04/202417/08/2021Jezik:
angleščina
Verzija:
08/04/2024
Velikost datoteke:
591.8 KB
Ime datoteke:
XA02543CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digital conductivity sensors with Memosens technology
CSA C/US IS Cl. 1 Div. 1 GP A-D T3/T4/T6 + CSA C/US IS Cl. 1 Zone 0 AEx
ia IIC T3/T4/T6EN SL 05/04/202431/05/2021Jezik:
angleščina
Verzija:
05/04/2024
Velikost datoteke:
580 KB
Ime datoteke:
XA02079CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens CLS15E, CLS16E, CLS21E, CLS82E
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 21/09/2022Jezik:
angleščina
Verzija:
21/09/2022
Velikost datoteke:
489.2 KB
Ime datoteke:
XA02081CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digital conductivity sensors with Memosens technology
UK II 1 G Ex ia IIC T3/T4/T6 GaEN SL 11/03/202415/01/202231/05/2021Jezik:
angleščina
Verzija:
11/03/2024
Velikost datoteke:
492.9 KB
Ime datoteke:
XA02553CEN_0324-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens CLS15E, CLS16E, CLS21E, CLS82E
Supplement to: BA02018C, BA02019C, BA02020C and BA02027C
Safety instructions for electrical apparatus in explosion-hazardous
areas
JPN Ex ia IIC T3/T4/T6 GaEN SL 19/08/2021Jezik:
angleščina
Verzija:
19/08/2021
Velikost datoteke:
488.3 KB
Ime datoteke:
XA02686CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digital conductivity sensors with Memosens technology
KOR Ex ia IIC T6...T3 GaEN SL 25/03/202414/01/2022Jezik:
angleščina
Verzija:
25/03/2024
Velikost datoteke:
488.9 KB
Ime datoteke:
XA02802CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens CLS15E, CLS16E, CLS21E, CLS82E
Digitalni senzor el. prevodnosti s tehnologijo Memosens
ATEX: II 1 G Ex ia IIC T3/T4/T6 Ga
IECEx: Ex ia IIC T3/T4/T6 GaEN SL 13/03/202404/12/2020Jezik:
slovenščina
Verzija:
13/03/2024
Velikost datoteke:
498.4 KB
Ime datoteke:
XA02080CSL_0224-00.pdf
-
