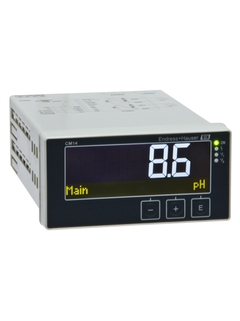

Liquiline CM14 is a basic panel transmitter for pH/ORP, conductivity or oxygen measurements.

1-channel transmitter
Liquiline CM14

Compact panel device for the food, power, water and wastewater industries

CM14

Primerjava

Prikaži vse: Analiza tekočine Toroidni/induktivni

Lastnosti na dlani

Input

One-channel-transmitter
Output / communication

0/4-20mA
Ingres protection

Front IP65 , NEMA 4X, Body IP20

Vse specifikacije

Področje uporabe

Liquiline CM14 is a basic transmitter that offers all that you need to run a standard measuring point. It fits in the common cabinet cut-outs and is easy to commission thanks to Memosens digital technology. The Memosens hot plug and play concept allows you to quickly install and configure your digital pH/ORP, conductivity or dissolved oxygen sensors. Liquiline CM14 is compact, easy-to-operate, and cost efficient.

The Liquiline CM14 panel transmitter is suitable for all applications in non-hazardous areas, for example in these industries and their utilities:

Food & Beverages
Power & Energy
Water & Wastewater

Liquiline CM14 features the following protocols and interfaces:

0/4...20 mA

Prednosti

Saves space, saves money: Good price-performance ratio and small footprint – perfect for skids.
Easy to operate: Plug & play with pre-calibrated Memosens sensors.
Reliable and safe measurement: Memosens technology offers digital signal transmission and sensor check system.
