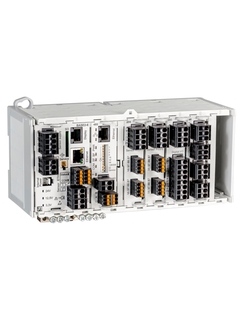

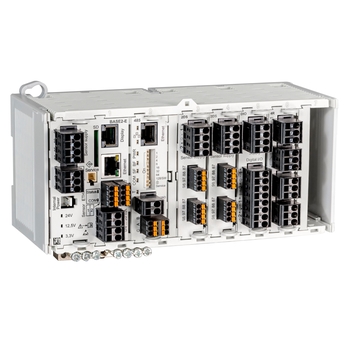

8-channel transmitter
Liquiline CM448R

Liquiline CM448R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more. ©Endress+Hauser

Liquiline CM448R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

An optional display enables configuration, maintenance and operation of the measuring point on-site. ©Endress+Hauser

An optional display enables configuration, maintenance and operation of the measuring point on-site.

Heartbeat Technology offers diagnostics, verification and monitoring of the measuring point. ©Endress+Hauser

Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Flexible multiparameter DIN-rail and cabinet device for all industries

Liquiline CM448R is a digital multiparameter transmitter for process monitoring and control in all applications - even where mounting space is limited. It saves you time and money through fast and simple system integration, installation, and operation. The 8-channel device can be easily adapted to your process, accommodating 1 to 8 sensors as desired. Liquiline CM448R provides you with all the benefits of a best-in-class transmitter platform from clever simplicity to maximum process safety.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Input

      1...8x Memosens digital input
      2x 0/4..20mA Input optional
      2..4x Digital input optional

    • Output / communication

      2...8x 0/4...20 mA current outputs
      alarmrelay
      4x relay
      ProfibusDP
      Modbus RS485
      Modbus TCP
      Ethernet

    • Ingres protection

      IP20 transmitter
      IP66 optional Display

please wait Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
Prodajna cena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Saves space, saves money:
      Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.

    • High-speed installation:
      No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.

    • Simple and safe commissioning:
      Saving...

  • Področje uporabe

    The Liquiline CM448R multiparameter transmitter is suitable for all applications in non-hazardous areas, for example in these industries and their utilities:

    • Food & Beverages

    • Life Sciences

    • Power & Energy

    • Water & Wastewater

    • Chemicals

    Liquiline...

Podrobnosti

  • Merilni princip

    Amperometric oxygen measurement

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Ultrasonic sensor

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Ingres protection

    IP20 transmitter
    IP66 optional Display

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Single beam scattered light

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Ingres protection

    IP20 transmitter
    IP66 optional Display

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Sensor ORP / Redox

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch

  • Process temperature

    -20...55°C / 0...130°F

  • Ingres protection

    IP20 transmitter
    IP66 optional Display

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Potentiometric

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Ingres protection

    IP20 transmitter
    IP66 optional Display

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Total chlorine

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet

  • Merilni princip

    Potentiometric

  • Application

    Modular 4 wire controller
    Multichannel:1-8 digital channels for Memosens protocol
    Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
    8 sensors connectable in any combination
    Functionality modular extendable at any time
    Plug and play for modules and sensors

  • Characteristic

    Robust plastic housing
    All non-ex applications

  • Design

    8x Memosens input
    2...8x current output
    alarmrelay
    2x relay
    SD card for software update and copy & paste of setup

  • Material

    Polycarbonate

  • Dimension

    220 (8.66) x 100 (3.94) x 98 (3.86) mm (inch)

  • Process temperature

    -20...55°C / 0...130°F

  • Ingres protection

    IP20 transmitter
    IP66 optional Display

  • Input

    1...8x Memosens digital input
    2x 0/4..20mA Input optional
    2..4x Digital input optional

  • Output / communication

    2...8x 0/4...20 mA current outputs
    alarmrelay
    4x relay
    ProfibusDP
    Modbus RS485
    Modbus TCP
    Ethernet
