Lastnosti na dlani
-
Measuring range
–1 500 to 1 500 mV
-
Process temperature
0 to 100 °C (32 to 212 °F)
0 to 140 °C (32 to 284 °F) (140 °C (284 °F) or sterilization only) -
Process pressure
0.8 to 7 bar (11.6 to 101.5 psi) absolute
Področje uporabe

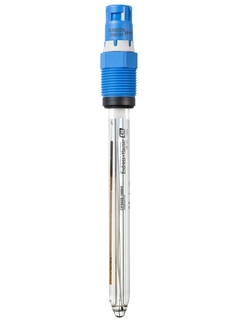

Memosens CPS62E is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media, in low conductivities and at high temperatures. Thanks to Memosens 2.0 digital technology, CPS62E combines maximum process integrity with simple operation. It resists moisture and enables lab calibration. It offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
Process technology and monitoring of processes with:
- Quickly changing ORP values
- High proportion of electrode poisons such as H2SChemical processes
Hygienic and sterile applications:
- Fermenters
- Biotechnology
- Life sciences

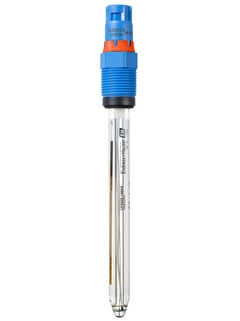

With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Prednosti
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Sensor resists strong acids and bases and high organic loads.
Maintains high accuracy even after CIP/SIP or autoclaving.
Free from animal-based materials and from acrylamide.
Upside-down mounting option allows for flexible installation.
Maximum process safety is ensured by non-contact, inductive signal transmission.
Minimized process downtime and extended sensor lifetime result in reduced operating costs.
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
-
Tehnične informacije (TI)
Memosens CPS62E
ORP sensor for hygienic and sterile applications
EN SL 10/09/2021Jezik:
angleščina
Verzija:
10/09/2021
Velikost datoteke:
523.1 KB
Ime datoteke:
TI01604CEN_0121.pdf
-
-
-
Navodila za uporabo (BA)
pH senzorji CPSx1E, CPFx1E ORP senzorji CPSx2E, CPFx2E
Meritve pH in ORP
EN SL 14/10/202131/03/202115/03/202109/07/202019/05/2020Jezik:
slovenščina
Verzija:
14/10/2021
Velikost datoteke:
1 MB
Ime datoteke:
BA01988CSL_0421.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 19/11/2024Jezik:
angleščina
Verzija:
19/11/2024
Velikost datoteke:
537 KB
Ime datoteke:
XA03488CEN_0124-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK Ex II 1 G Ex ia IIC T3/T4/T6 Ga
UK Ex II 1GEx ia IIC T4/T6 GaJezik:
angleščina
Verzija:
26/11/2021
Velikost datoteke:
684.7 KB
Ime datoteke:
XA02588CEN_0221-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
EAC Ex 0Ex ia IIC T3/T4/T6 Ga X
EAC Ex 0Ex ia IIC T4/T6 Ga XEN SL 26/01/2022Jezik:
angleščina
Verzija:
26/01/2022
Velikost datoteke:
424.3 KB
Ime datoteke:
XA02817CEN_0122-00.pdf
-
-
-
Ex varnostna navodila (XA)
Senzorji pH/ORP Memosens
Meritve pH in ORP
Varnostna navodila za električno opremo v eksplozijsko nevarnih območjihEN SL 23/04/202118/02/202103/07/2020Jezik:
slovenščina
Verzija:
23/04/2021
Velikost datoteke:
894.7 KB
Ime datoteke:
XA01991CSL_0321.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to: BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
NEPSI Ex ia IIC T3/T4/T6 Ga
NEPSI Ex ia IIC T4/T6 GaEN SL 07/09/202105/08/2020Jezik:
angleščina
Verzija:
07/09/2021
Velikost datoteke:
529.3 KB
Ime datoteke:
XA02113CEN_0221.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
pH and ORP measurement
Supplement to BA01988C, BA02142C
Safety instructions for electrical apparatus in explosion-hazardous
areas
KOR Ex ia IIC T3/T4/T6 Ga
KOR Ex ia IIC T4/T6 GaEN SL 22/10/2021Jezik:
angleščina
Verzija:
22/10/2021
Velikost datoteke:
425.6 KB
Ime datoteke:
XA02739CEN_0121.pdf
-
-
-
Ex varnostna navodila (XA)
XA Memosens pH/ORP sensors
pH and ORP measurement
Safety instructions for electrical apparatus in explosion-hazardous
areasEN SL 27/11/202426/08/2024Jezik:
angleščina
Verzija:
27/11/2024
Velikost datoteke:
503.3 KB
Ime datoteke:
XA03347CEN_0224-00.pdf
-
-
-
Ex varnostna navodila (XA)
Memosens pH/ORP sensors
CSA C/US IS Cl. I Div. 1 GP A-D T3/T4/T6 + CSA C/US IS Cl. I Zone 0 AEx
ia IIC T3/T4/T6
CSA C/US IS Cl. I Div. 1 GP A-D T4/T6 + CSA C/US IS Cl. I Zone 0 AEx ia
IIC T4/T6
CSA C/ US Cl. 1 Div 1&2 GP A-D T6…T3
Safety InstructionsEN SL 01/12/202215/02/202220/08/2020Jezik:
angleščina
Verzija:
01/12/2022
Velikost datoteke:
860.7 KB
Ime datoteke:
XA02235CEN_0422-00.pdf
-
