Področje uporabe

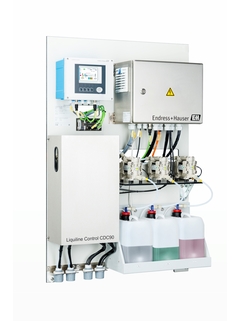

The Liquiline Control CDC90 plug & play system automates Memosens pH and ORP measuring points in all industries. It cleans, calibrates and adjusts up to two sensors automatically, reducing maintenance effort, improving working safety in harmful areas and helping to ensure the yield and quality of your product. It can easily be integrated into existing plant infrastructures and allows convenient remote control of your measuring points via any process control system or mobile device.
Liquiline Control CDC90 automates pH and ORP measuring points in all industries. It is suitable for each application where:
The sensors must be cleaned and/or calibrated frequently.
The measuring point is difficult to access.
The measuring point is in a harmful environment.
The process requires reproducible precise pH measurement.
The process requires measurement at frequent intervals.
The performance of the measuring point must be controlled and documented frequently.
Prednosti
Increased occupational safety for your employees: Liquiline Control CDC90 reduces maintenance and servicing measures to a minimum – a decisive advantage, especially in difficult-to-access and hazardous environments.
With customizable cleaning and calibration cycles for up to two sensors, you can achieve high process reliability, product quality and optimum product yield. Blockages and soiling of the sensors are removed in good time.
Intelligent media distribution and dosing guarantees reproducible calibration results and ensures reliable measured values at all times.
Minimize operating costs by optimizing buffer and cleaning agent consumption at both measuring points. This is ensured by the sophisticated hydraulics of the Liquiline Control CDC90.
Seamless integration into your process control system with certified communication standards. Includes analog or digital signals as well as fieldbus: 0/4 ... 20 mA, PROFIBUS DP, Modbus TCP, EtherNet/IP, PROFINET, and web server technology.
Predhodnik
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
-
-
Tehnične informacije (TI)
TI Liquiline Control CDC90
The smart system for automated measuring points
EN SL 26/09/202423/03/202220/04/202112/12/201931/01/2018Jezik:
angleščina
Verzija:
26/09/2024
Velikost datoteke:
2.5 MB
Ime datoteke:
TI01340CEN_0624-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Data transmission via PROFIBUS DP
EN SL 23/09/202423/03/2022Jezik:
angleščina
Verzija:
23/09/2024
Velikost datoteke:
1.2 MB
Ime datoteke:
BA02239CEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Data transmission via Modbus TCP
EN SL 23/09/202423/03/2022Jezik:
angleščina
Verzija:
23/09/2024
Velikost datoteke:
1002.7 KB
Ime datoteke:
BA02238CEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Data transmission via PROFINET
EN SL 23/09/202423/03/2022Jezik:
angleščina
Verzija:
23/09/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
BA02240CEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
Liquiline Control CDC90
Datenübertragung über EtherNet/IP
Jezik:
nemščina
Verzija:
23/03/2022
Velikost datoteke:
1.1 MB
Ime datoteke:
BA02241CDE_0122-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Data transmission via analog communication 0/4 to 20 mA
EN SL 02/10/202423/03/2022Jezik:
angleščina
Verzija:
02/10/2024
Velikost datoteke:
772.8 KB
Ime datoteke:
BA02237CEN_0224-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Automated cleaning and calibration of Memosens sensors
EN SL 01/08/202423/03/202208/02/202106/10/202011/12/2019Jezik:
angleščina
Verzija:
01/08/2024
Velikost datoteke:
4.9 MB
Ime datoteke:
BA01707CEN_0924-00.pdf
-
-
-
Navodila za uporabo (BA)
BA Liquiline Control CDC90
Data transmission via EtherNet/IP
EN SL 23/09/202423/03/2022Jezik:
angleščina
Verzija:
23/09/2024
Velikost datoteke:
1.1 MB
Ime datoteke:
BA02241CEN_0224-00.pdf
-
-
-
Kratka navodila (KA)
KA Liquiline Control CDC90
Avtomatizirano čiščenje in kalibriranje senzorjev Memosens
EN SL 01/08/202423/03/202208/02/202122/01/202111/12/2019Jezik:
slovenščina
Verzija:
01/08/2024
Velikost datoteke:
4.6 MB
Ime datoteke:
KA01306CSL_0724-00.pdf
-
-
-
Posebna dokumentacija (SD)
Liquiline Control CDC90
Data transmission via PROFINET
EN SL 17/12/202012/12/2019Jezik:
angleščina
Verzija:
17/12/2020
Velikost datoteke:
1013.3 KB
Ime datoteke:
SD02514CEN_0220.pdf
-
