Ultrasonic interface sensor
Turbimax CUS71D

Ultrasonic interface sensor
Turbimax CUS71D ©Endress+Hauser
Ultrasonic interface sensor
Turbimax CUS71D ©Endress+Hauser
Ultrasonic interface sensor
Turbimax CUS71D ©Endress+Hauser

Memosens immersion sensor for sedimentation tanks in water, wastewater and utilities

Turbimax CUS71D continuously monitors the separation and transition zones in clarification and settling tanks, ensuring safe, economic and efficient sedimentation processes. It provides you with reliable, real-time measured values in real-time for quick control of valves and actuators. Turbimax CUS71D is ideal sensor for every measuring task - from protection of downstream water in wastewater treatment plants to optimization of backwash times in waterworks.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Measurement range

      0.3 to 10 m (1 to 32 ft)

    • Process temperature

      1 to 50 °C (34 to 122 °F)

    • Process pressure

      Standard version: 0 to 6 bar (0 to 87 psi)
      Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)

please wait Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
Prodajna cena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Reliable: Sensor provides accurate and continuous measurement of interface level or range.

    • Safe: Real-time interface information ensures quick control of valves and actuators.

    • Easy: Simple commissioning thanks to predefined calculation models.

    • Cost-saving...

  • Področje uporabe

    Turbimax CUS71D is an online ultrasonic interface sensor for:

    • Wastewater treatment plants:
      - Solid sedimentation measurement

    • Drinking and process water:
      - Solid sedimentation measurement
      - Filter monitoring and filter backwash
      - Level measurement in...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Ultrasonic sensor

  • Application

    Continious interface measurement in sedimentation basins

  • Installation

    Submerged sensor with fixed cable

  • Measurement range

    0.3 to 10 m (1 to 32 ft)

  • Measuring principle

    Ultrasonic return-time measurement

  • Material

    Sensor: ABS and epoxy resin

    Wiper: EPDM

    Housing: Polyamide

  • Dimension

    Diameter: 74 mm(2.9 inch)

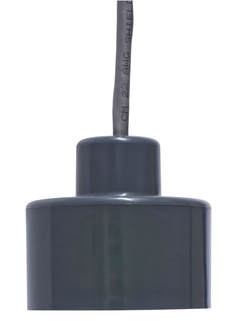

    Lenght standard sensor: 68 mm (2.7 inch)

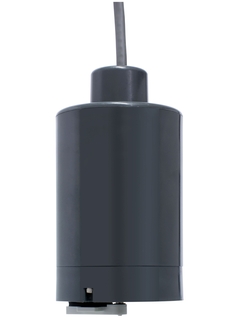

    Lenght wiper sensor: 135 mm (5.3 inch)

  • Process temperature

    1 to 50 °C (34 to 122 °F)

  • Process pressure

    Standard version: 0 to 6 bar (0 to 87 psi)

    Version with wiper: 0 to 0.3 bar (0 to 4.4 psi)

  • Temperature sensor

    -

  • Ex certification

    None

  • Connection

    Process connection: G1 and NPT 3/4"

    Fixed cable 15 m

  • Ingres protection

    IP68

  • Output / communication

    Digital output for connection to Liquiline CM44x

  • Additional certifications

    EAC
