Lastnosti na dlani
-
Measurement range
0 to 5 mg/l total chlorine or
0 to 20 mg/l total chlorine -
Process temperature
0 to 55 °C , non-freezing
(32 to 130 °F) -
Process pressure
1 bar relative (14,5 psi relativ)
Max. 2 bar (max. 29 psi) -
Measuring method
Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent
Področje uporabe

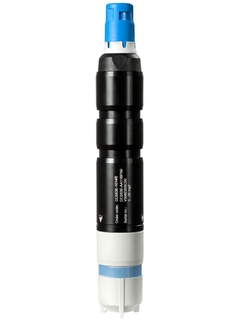

Total chlorine is the mixture of free and bound chlorine components and thus a good indicator of residual disinfectants in discharge and process water. Memosens CCS53E provides continuous measurements of total chlorine, even after periods when no chlorine is present. This enables to measure "zero" chlorine, the absence of chlorine. Thanks to Memosens 2.0 technology, the sensor combines maximum process and data integrity with simple operation. This is the perfect basis for predictive maintenance.
The sensor Memosens CCS53E for total chlorine measures reliably in:
Wastewater treatment plants: to control the outlet water and enable reuse
Process water in utilities of all industries: to detect chlorine and avoid any damage, for example in cooling towers
Food and beverage industry: to ensure hygienic filling and high food quality in washing water and to protect membranes in reverse osmosis systems
Drinking water: to ensure disinfection and avoid overdosing
Pool: to detect contaminants
Prednosti
The sensor is not deactivated after periods of time when no chlorine is present, but reacts right away. This continuous measurement facilitates quick responses to process changes and ensures compliance with regulations.
The low-maintenance, amperometric sensor reduces the cost of ownership of the measuring point, particularly compared to colorimetric measuring systems.
High process up-time: pre-calibrating the sensor and swaping it with plug & play enables a fast sensor exchange. Plus, the polarization time is faster with Memosens 2.0.
Easy combination with other relevant parameters of liquid analysis such as pH and ORP by easily connecting the Liquiline multiparameter transmitter.
Wide measurement range for different applications: From zero to trace measurement up to total chlorine concentrations of 20 mg/l.
