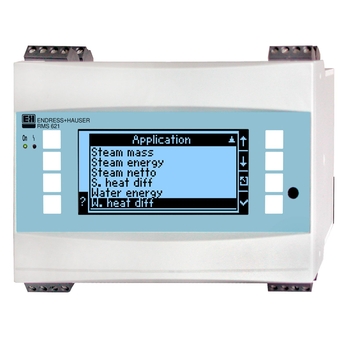

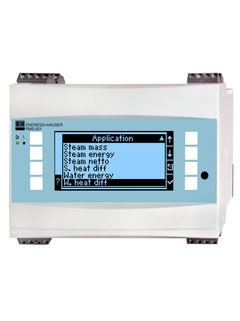

Product picture energy manager RMS621

RMS621
Energy manager

Steam and heat computer for industrial energy calculation of steam and water

RMS621
Please Wait (spinning wheel)
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-

Lastnosti na dlani

  • Input

    2...6x RTD
    2...8x I
    2...8x PFM
    2...8x Impulse (aktive)
    2...8x Impulse (passive)

  • Output

    3...9x transmitter power supply

  • Display

    Dot-Matrix LCD, backlit, colour change in case of alarm event

  • Calculations

    heat quantity
    heat quantity difference

Področje uporabe

The steam and heat computer RMS621 calculates steam mass, steam heat quantity, net steam quantity, steam-heat differential, water heat quantity and water-heat differential in up to 3 simultaneous applications. Bi-directional and splitting range measurements are possible. It supports analog, PFM or pulse signals for flow and pressure sensors. Temperature sensors can be connected in 3- or 4-wire connection or via transmitter. A loop power supply is available for each analog or pulse input.

  • Energy management

  • Chemical industry

  • Heating and air conditioning

  • Pharmaceutical industry

  • Food and beverage

  • Plant and panel manufacture

Prednosti

  • Calculation of the following applications:
    Steam mass, steam heat quantity, net steam quantity, steam-heat differential, water heat quantity, water heat differential

  • Simultaneous calculation of up to three applications per device

  • Bi-directional flow applications or energy measurement is possible

  • Split-range flow measurements

  • Flow compensation due to improved differential
    pressure procedure

  • Calculation as per IAPWS-IF 97

  • Meets standards EN 1434-1, 2, 5 and 6 and OIML R75
