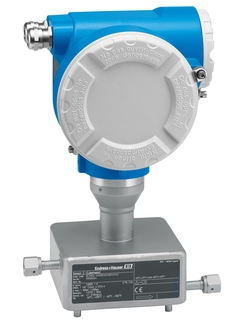

Picture of Coriolis flowmeter Cubemass / 8CM for measuring smallest quantities of liquids and gases

Cubemass
Coriolis flowmeter

Compact sensor for smallest quantities with easy system integration

8CM
Nalaganje cene
Cene trenutno niso na voljo
Price on request
from CHF ??.-
Picture of Coriolis flowmeter Cubemass / 8CM for measuring smallest quantities of liquids and gases ©Endress+Hauser

Cubemass - The Coriolis flowmeter for measuring smallest quantities of liquids and gases

Cubemass - The Coriolis flowmeter for measuring smallest quantities of liquids and gases

Lastnosti na dlani

  • Max. measurement error

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm3

  • Measuring range

    0 to 1000 kg/h (0 to 37 lb/min)

  • Medium temperature range

    –50 to +200 °C (–58 to +392 °F)

  • Max. process pressure

    PN 40, Class 300, 10K, 400 bar (5800 psi)

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4539 (904L); 1.4404 (316/316L)

Področje uporabe

Cubemass is the proven sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics, e.g. in applications like lacquering or surface finishing. Neither high pressure nor alternating flow conditions compromise its accuracy. Equipment manufacturers value Cubemass as compact Coriolis sensor.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Measuring accurately smallest quantities of liquids and gases

Device properties

  • Nominal diameter: DN 1 to 6 (1/24 to 1/4")

  • Process pressure up to 400 bar (5800 psi)

  • Medium temperature up to +200 °C (+392 °F)

  • Robust transmitter housing

  • Modbus RS485

  • Pulse output

Prednosti

  • Measuring accurately smallest quantities of liquids and gases

  • Space-saving installation – compact single-tube design

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Suitable for skids – lightweight sensor

  • Cost savings – very low power consumption

  • Fast commissioning – pre-configured devices

  • Automatic recovery of data for servicing
