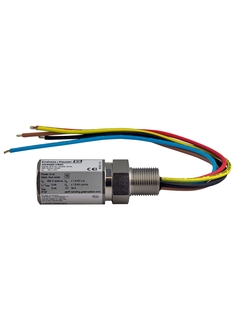

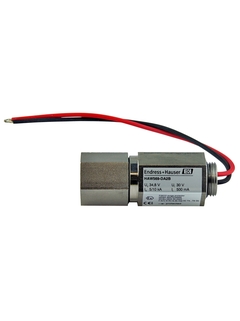

HAW569
Surge arresters
Surge arresters for field mounting
The HAW569 surge arrester is used to protect electronic components in field devices from being destroyed. It ensures that overvoltage surges which occur in signal cables (e.g. 4 to 20 mA), in communication lines of Field buses (HART, PA, FF) and in power lines are safely passed into the ground. The functionality of the electronic component to be protected is not affected as, using the impedance-free connection of the protection unit, interference voltage drops cannot be introduced.
- F
- L
- E
- X
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Hitra izbira
Individualna konfiguracija
-
Prednosti
Compact device for the protection of signal / communication lines (Ex ia approval as an option) or for the simultaneous protection of signal, communication and supply lines (Ex d approval as an option)
Optionally available with SIL2 intrinsically safe...
-
Področje uporabe
HAW569 units are primarily used in process automation and in measuring and communication technology within the chemicals, pharmaceuticals, water and wastewater sectors as well as in the food industry.
Dokumenti / Priročniki / Softver
-
Technical information Surge Arrester HAW569/569Z
Overvoltage protection limiting high voltages on ungrounded twin-core
cablesTechnical Information (TI) -
HAW569
Technical Information
Overvoltage protection
for screwing into field housingTechnical Information (TI) -
Betriebsanleitung HAW569-AA2B / -DA2B /
Operating instructions HAW569-AA2B / -DA2B
HAW569-AA2B / -DA2B Überspannungsschutz für Signalleitungen zur
Montage in Feldgehäusen
HAW569-AA2B / -DA2B Surge arrester for signal lines for mounting in
field housingOperating Instruction (BA) -
Betriebsanleitung HAW569-CB2C
Operating instructions HAW569-CB2C
HAW569-CB2C Überspannungsschutz für Signal-/Versorgungsleitungen
zur Montage in Feldgehäusen
HAW569-CB2C Surge arrester for signal /supply lines for mounting in
field housingOperating Instruction (BA) -
Operating Short Manual
Surge Arrester HAW569, HAW569Z
Short Instruction (KA)09/05nemščina , angleščina , španščina , fr , italijanščina , nizozemščina -
Sicherheitshinweise Überspannungsschutz HAW569 /
Safety instructions surge arrester HAW569
Sicherheitshinweise für Zulassung /
Safety instructions for approval
ATEX II 2(1) G Ex ia IIC T6...T4 Gb, IECEx Ex ia [ia Ga] IICT6...T4 GbEx Safety Instructions (XA) -
ATEX Safety instructions Surge arrester HAW569Z
ATEX safety instructions for surge arrester HAW569Z, Designation
according to II 2(1)G (FISCO-Model)Ex Safety Instructions (XA) -
HAW562-DA2B CSA
HAW562-DA2B CSA
Ex Safety Instructions (XA) -
Sicherheitshinweise Überspannungsschutz HAW569 /
Safety instructions surge arrester HAW569
Sicherheitshinweise für Zulassung /
Safety instructions for approval
ATEX II 2 G Ex db IIC T6...T5 Gb, Ex db IIC T6...T5 Gb
CSA 70159199Ex Safety Instructions (XA) -
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misura
Publications (PU)05/19italijanščina -
Portfolio Overview
System products and data manager
Products and Solutions for completion of the measuring loop
Publications (PU)05/19angleščina -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
Fields of Activities (FA)10/14turščina -
Системные компоненты и Регистраторы
Обзор продукции
Fields of Activities (FA)06/13ruščina -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.Fields of Activities (FA)05/20španščina -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misuraFields of Activities (FA)04/18italijanščina -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)04/18poljščina -
Komponenty Systemów kontrolno-pomiarowych
Wskaźniki panelowe i obiektowe, zasilacze, bariery,
przetworniki sygnałów procesowych, ograniczniki przepięć
oraz przemysłowe liczniki ciepła i przepływu.Fields of Activities (FA)03/10poljščina -
System Products and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationFields of Activities (FA)02/20angleščina -
Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die ProzessautomatisierungFields of Activities (FA)02/20nemščina -
Produits système et data managers
Solutions associées
Fields of Activities (FA)01/19fr -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Competence Brochure (CP)01/17španščina -
E-direct Produktcatalogus 2018-2019
High quality, low price
Endress+Hauser Catalogues (EC)10/18nizozemščina -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)06/20nemščina -
Überspannungsschutz HAW569
Überspannungsschutz im Feldgehäuse:
Tender Text02/09nemščina -
over voltage protector
Product Code: HAW569-
Declaration Number: HE_00435_01.17
Manufacturer Specification: RoHSManufacturer Declarationangleščina -
over voltage protector
Product Code: HAW569-
Declaration Number: EC_00074_02.15EU Declarationnemščina , angleščina , fr -
over voltage protector
Product Code: HAW562-, HAW569-
Declaration Number: EC_00087_01.15EU Declarationnemščina , angleščina , fr -
over voltage protector
Product Code: HAW569-
Declaration Number: EC_00073_03.15EU Declarationnemščina , angleščina -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
Product Code: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
Declaration Number: EC_00569_01.17EU Declarationnemščina , angleščina , fr -
Product Family: over voltage protector
Product Code: HAW569-
Declaration Number: EH 10-12-034 R055 V1 R0SIL Declarationnemščina , angleščina -
over voltage protector
Product Code: HAW569-
Region/Country: Canada, USA
Approval Agency: CSA
Category: I/1/A,B,C,D T6...T4
Protection: [Ex ia Ga] IIC T6...T4 Gb, IS, AEx/Ex [ia] IIC T6...T4 GbExplosion Protectionangleščina -
over voltage protector
Product Code: HAW569-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II 2(1) G
Protection: Ex ia [ia Ga] IIC T6...T4 GbExplosion Protectionangleščina -
over voltage protector
Product Code: HAW569-
Region/Country: Europe (ATEX)
Approval Agency: DEKRA
Category: II2G
Protection: Ex d IIC T5 or T6 GbExplosion Protectionangleščina -
over voltage protector
Product Code: HAW569-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex ia [ia Ga] IIC T4…T6 GbExplosion Protectionangleščina -
over voltage protector
Product Code: HAW569-
Region/Country: Canada, USA
Approval Agency: CSA
Category: I/1,2/A,B,C,D T6...T4, II/1/E,F,G
Protection: Ex d IIC T6...T4Explosion Protectionangleščina -
over voltage protector
Product Code: HAW569-
Region/Country: International (IECEx)
Approval Agency: DEKRA
Protection: Ex d IIC T5 or T6 GbExplosion Protectionangleščina
Pribor / Nadomestni deli
-
-
Kataloška koda 51004387
Adapter NPT1/2/M20x1.5 cable entry
-
Kataloška koda 51006419
Screwed cable gland set 2x M20x15IP68
EMC-screwed cable gland M20 for direct/ indirect shield earthing, cable 6,5-13mm
-
Kataloška koda 51006420
Earthing ring-set HAW569 M20
for sensors with non conductive housing earthing ring, lock nut, flat plug
-
Kataloška koda
The unit is not repairable
-
