Lastnosti na dlani
-
Accuracy
Rod probe :+/- 2 mm (0.08 in)
Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
Coaxial probe: +/- 2 mm (0.08 in) -
Process temperature
-50...+200 °C
(-58...+392 °F) -
Process pressure / max. overpressure limit
Vacuum...40 bar
(Vacuum...580 psi) -
Max. measurement distance
Rod: 10 m (33 ft) Min DK>1.6
Rope: 25 m...30 m (82ft...98 ft) Min DK>1.6;
30m...45 m (98ft...148 ft) Min DK>1,9
Coaxial probe: 6 m (20 ft) Min DK>1.4 -
Main wetted parts
Rod probe:
316L, Alloy C, Ceramic
Rope probe:
316, 316L, Alloy C, Ceramic
Coaxial probe:
316L, Alloy C, Ceramic, PFA
Področje uporabe
Levelflex FMP51 for level measurement even under extreme process conditions like
high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

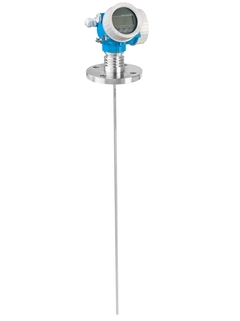

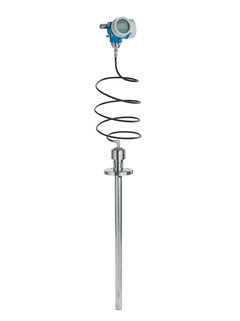

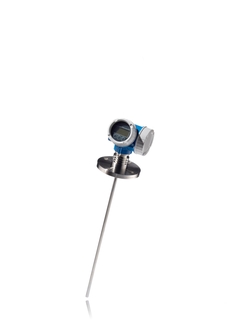

Version with rod, rope or coax probe.

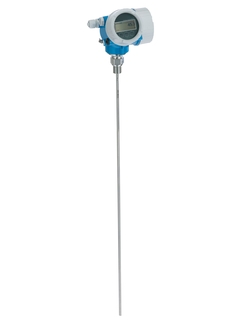

Process connections: Threads or flange
Temperature: -50 to +200°C (-58 to +392°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Maximum measuring range: Rod 10m (33ft), rope 45m (148ft), coax 6m (20ft)
Accuracy: ±2mm (0.08")
International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5-point linearity protocol
Prednosti
Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test for SIL and WHG saves time and costs
Videoposnetki
Segment Extended
-
Vrhunski produkti
- Visoko funkcionalni in praktični
Tehnična odličnost
Preprostost

-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Short Instruction (KA)
Levelflex FMP51, FMP52, FMP54 HART
Slovenska različica - 04/2022
Vodeni radar
EN SL 30/06/202205/04/202212/04/201817/11/201712/02/2015Jezik:
slovenščina
Verzija:
05/04/2022
Velikost datoteke:
1.5 MB
Ime datoteke:
KA01077FSL_1922-00.pdf
-
-
-
Operating Instruction (BA)
Levelflex FMP51 Modbus Operating Instructions
Angleška različica - 03/2019
Guided wave radar
EN SL 12/04/202204/03/2019Jezik:
angleščina
Verzija:
04/03/2019
Velikost datoteke:
4.4 MB
Ime datoteke:
BA01957FEN_0119.pdf
-
-
-
Technical Information (TI)
Weld-in adapter, process adapter and flanges
Level and pressure measurement
EN SL 28/10/202119/06/202008/11/201917/08/201730/06/2016Jezik:
angleščina
Verzija:
28/10/2021
Velikost datoteke:
2.9 MB
Ime datoteke:
TI00426FEN_2321.pdf
-
-
-
Technical Information (TI)
Levelflex FMP51 Modbus
Guided wave radar
EN SL 30/06/202228/02/2019Jezik:
angleščina
Verzija:
30/06/2022
Velikost datoteke:
3.4 MB
Ime datoteke:
TI01454FEN_0222-00.pdf
-
-
-
Technical Information (TI)
Levelflex FMP51, FMP52, FMP54
Guided wave radar
EN SL 12/04/202231/07/202004/03/201912/04/201809/11/2017Jezik:
angleščina
Verzija:
12/04/2022
Velikost datoteke:
4.8 MB
Ime datoteke:
TI01001FEN_2722-00.pdf
-
-
-
Operating Instruction (BA)
Levelflex / Levelflex M Zentrierscheibe / Centering disk (PFA) Mounting Instructions
Accessory
EN SL 29/09/201727/02/201425/04/201208/02/201124/09/2010Jezik:
angleščina
Verzija:
29/09/2017
Velikost datoteke:
82.6 KB
Ime datoteke:
BA00378FA2_1717.pdf
-
-
-
Operating Instruction (BA)
Levelflex FMP51, FMP52, FMP54 PROFIBUS PA
Guided wave radar
EN SL 30/06/202212/04/201816/11/201715/12/201601/12/2014Jezik:
angleščina
Verzija:
30/06/2022
Velikost datoteke:
4.7 MB
Ime datoteke:
BA01006FEN_1922-00.pdf
-
-
-
Operating Instruction (BA)
Levelflex FMP51 Modbus
Guided wave radar
EN SL 12/04/202204/03/2019Jezik:
angleščina
Verzija:
12/04/2022
Velikost datoteke:
4.5 MB
Ime datoteke:
BA01957FEN_0222-00.pdf
-
-
-
Operating Instruction (BA)
Levelflex FMP51, FMP52, FMP54 HART
Guided wave radar
EN SL 30/06/202231/07/202012/04/201816/11/201715/12/2016Jezik:
angleščina
Verzija:
30/06/2022
Velikost datoteke:
5.4 MB
Ime datoteke:
BA01001FEN_2322-00.pdf
-
-
-
Operating Instruction (BA)
Accessory
Centering star PEEK
EN SL 27/02/201424/09/201003/12/200802/04/2008Jezik:
angleščina
Verzija:
27/02/2014
Velikost datoteke:
99.3 KB
Ime datoteke:
BA00377FA2_1414.pdf
-
-
-
Operating Instruction (BA)
Levelflex FMP51, FMP52, FMP54 FOUNDATION Fieldbus
Guided wave radar
EN SL 30/06/202212/04/201816/11/201715/12/201609/06/2015Jezik:
angleščina
Verzija:
30/06/2022
Velikost datoteke:
5.9 MB
Ime datoteke:
BA01052FEN_0722-00.pdf
-
-
-
Device Parameter (GP)
Levelflex FMP5x HART Description of Device Parameters
Guided wave radar
EN SL 28/04/201630/10/201426/02/201429/07/201101/10/2010Jezik:
angleščina
Verzija:
28/04/2016
Velikost datoteke:
3.3 MB
Ime datoteke:
GP01000FEN_1616.pdf
-
