Modular TC thermometer

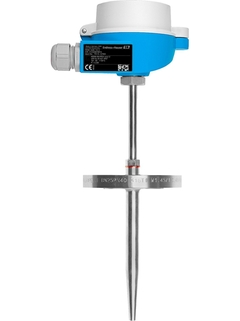

Thermocouple thermometer TC15 ©Endress+Hauser
Thermocouple thermometer TC15 ©Endress+Hauser

Comprehensive and common temperature measurement technology for almost all branches of industry

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Accuracy

      class 1 acc. to IEC 60584

    • Response time

      depending on configuration

    • Max. process pressure (static)

      at 20 °C: 400 bar (5.802 psi)

    • Operating temperature range

      Type K:
      -40 °C ... 1.100 °C
      (-40 °F ...2.012 °F)
      Type J:
      -40 °C ...750 °C
      (-40 °F ...1.382 °F)

    • Max. immersion length on request

      up to 30.000,00 mm (1.181,10'')

Hitra izbira

Izberite med predlaganimi možnostmi
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Extension neck to protect the head transmitter...

  • Področje uporabe

    • Universal range of application

    • Particularly suitable for steam and gas applications with high process pressures and temperatures

    • Measuring range: –40 to 1100 °C (–40 to 2012 °F)

    • Static pressure range up to 400 bar (5800 psi)

    • Degree of protection: up to...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Thermocouple

  • Characteristic / Application

    metric style

    modular temperature assembly

    universal range of application

    suitable for hazardous areas

    suitable for high process pressures

    flanged process connection

    with neck

    incl. thermowell / protection tube (metal)

  • Thermowell / protection tube

    bar stock (drilled)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    18,0 mm (0,71'')

    24,0 mm (0,94'')

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

  • Material protection tube/ thermowell

    1.0460 (A105)

    1.4571 (316Ti)

    1.7335 (13CrMo4-5; F-11)

    Alloy C276 (2.4819)

    Duplex SAF 2205 (1.4462)

    Titan Gr2 (3.7035 )

  • Optional coating

    Not defined

  • Process connection

    weld in version

    flange:

    DN25 PN40 B1 (EN1092)

    DN40 PN40 B1(EN1092)

    DN50 PN40 B1 (EN1092)

    ASME 1" 150 RF (B16.5)

    ASME 1" 300 RF (B16.5)

  • Tip shape

    tapered

  • Surface roughness Ra

    0,8 μm (31,5 μin.)

  • Operating temperature range

    Type K:

    -40 °C ... 1.100 °C

    (-40 °F ...2.012 °F)

    Type J:

    -40 °C ...750 °C

    (-40 °F ...1.382 °F)

  • Max. process pressure (static)

    at 20 °C: 400 bar (5.802 psi)

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    NEPSI

    IECEx

    EAC Ex

  • Certification

    Gost Metrology

    SIL (transmitter only)
