Lastnosti na dlani
-
Accuracy
class A acc. to IEC 60751
-
Response time
t50 = 1 s
t90 = 2 s -
Max. process pressure (static)
at 20 °C: 100 bar (1.450 psi)
-
Operating temperature range
PT 100:
-50 °C ...200 °C
(-58 °F ...392 °F) -
Max. immersion length on request
up to 600,00 mm (23,62'')
Področje uporabe

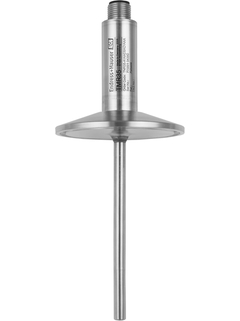

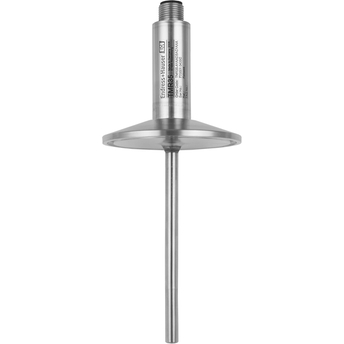

With cost efficiency, optimal use of space, reliable operation, easy commissioning and hygienic design the TMR35 fulfills all the requirements in the Food & Beverage as well as in the Life Science industries. A variety of hygienic process connections leads to a high flexibility.
The TMR35 compact thermometers are used to measure temperatures from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck. The most common installation locations are tanks and pipes. TMR35 with process connections for hygienic applications.
Prednosti
Small, compact design made entirely of stainless steel
Extremely short response times
Highly accurate even with short insertion lengths
4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output
Configuration and visualization with ReadWin® 2000 PC operating software, which is free of charge
Breakdown information in event of sensor break or sensor short-circuit, adjustable as per NAMUR NE43
Hygienic compatible design with 3-A marking and EHEDG certification;
Marine approval
Segment Fundamental
-
Enostavni produkti
- Lahka izbira, vgradnja in uporaba
Tehnična odličnost
Preprostost
-
Standardni produkti
- Zanesljivi, robustni, nezahtevni za vzdrževanje
Tehnična odličnost
Preprostost
-
Specialni produkti
- Zasnovani za posebej zahtevne aplikacije
Tehnična odličnost
Preprostost
Spremenljivo
FLEX izbira | Tehnična odličnost | Preprostost |
---|---|---|
Segment Fundamental Zadostite svojim osnovnim merilnim potrebam |
Tehnična odličnost
|
Preprostost
|
Segment Lean Obvladajte ključne procese na preprost način |
Tehnična odličnost
|
Preprostost
|
Segment Extended Optimirajte procese z inovativnimi tehnologijami |
Tehnična odličnost
|
Preprostost
|
Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije |
Tehnična odličnost
|
Preprostost
Spremenljivo |
Predhodnik
-
-
Tehnične informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN SL 15/09/202328/10/202130/07/202119/06/202008/11/2019Jezik:
angleščina
Verzija:
15/09/2023
Velikost datoteke:
2.9 MB
Ime datoteke:
TI00426FEN_2423.pdf
-
-
-
Tehnične informacije (TI)
Compact thermometer Easytemp TMR31, TMR35
For general (TMR31) or hygienic applications (TMR35), with Pt100, class
A sensor and 4-wire connection
Optionally with integrated 4 to 20 mA transmitter, PC programmableEN SL 31/10/202211/01/202120/12/201805/10/201817/07/2018Jezik:
angleščina
Verzija:
31/10/2022
Velikost datoteke:
920.3 KB
Ime datoteke:
TI00123REN_2022-00.pdf
-
-
-
Navodila za uporabo (BA)
Easytemp TMR31, TMR35
Kompaktni termometer Pt100
TMR31 za splošne aplikacije
TMR35 za higienske aplikacijeEN SL 31/10/202211/01/202127/07/201820/01/201605/08/2014Jezik:
slovenščina
Verzija:
11/01/2021
Velikost datoteke:
951.5 KB
Ime datoteke:
BA00215RSL_1721.pdf
-
-
-
Navodila za uporabo (BA)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC SoftwareEN SL 02/02/2005Jezik:
angleščina
Verzija:
02/02/2005
Velikost datoteke:
883.5 KB
Ime datoteke:
Ba213ra2.pdf
-
-
-
Posebna dokumentacija (SD)
Device viewer
Technical documentation in other languages
Jezik:
angleščina
Verzija:
14/07/2021
Velikost datoteke:
478.5 KB
Ime datoteke:
SD02429R09EN_0121.pdf
-
-
-
Posebna dokumentacija (SD)
SD Hygienic process connection types
Supplement to TM311, TM371, TM372, TM401, TM411, TM402, TM412, TT411,
TT412, TE411, TK40, TMR35, DTT35, TTR35Jezik:
angleščina
Verzija:
15/09/2023
Velikost datoteke:
800.3 KB
Ime datoteke:
SD03119TEN_0123-00.pdf
-
-
-
PU (objava)
TMR3x Hygienisches Kompaktthermometer
Kompakt, schnell und präzise
Die kompakten Thermometer TMR31
und TMR35 richten sich mit ihrer erstklassigen hygienischen
Bauform an Anwendungen in der Life-Sciences- sowie der
Lebensmittel- und Getränkeindustrie.Jezik:
nemščina
Verzija:
07/03/2024
Velikost datoteke:
3.6 MB
Ime datoteke:
PU01233T_09_DE_0324 TMR35.pdf
-
-
-
PU (objava)
Next Level Hygienic
Komplettangebot für
die Lebensmittel- und Getränke- sowie die
Life-Sciences-IndustrieJezik:
nemščina
Verzija:
12/09/2022
Velikost datoteke:
3.3 MB
Ime datoteke:
PU01305T_09_DE_03.22_online.pdf
-
-
-
PU (objava)
Next Level Hygienic: Complete offering for the Food & Beverage and Life Sciences industries
Endress+Hauser offers innovative
temperature sensors and assemblies,
system products, accessories, software
solutions and related services for
hygienic, sterile and aseptic applications
in the food & beverage and life
sciences industries governed by stringent
quality and safety regulations.Jezik:
angleščina
Verzija:
05/08/2022
Velikost datoteke:
25.5 MB
Ime datoteke:
PU01305T_09_EN_03.22.pdf
-
-
-
PU (objava)
Misura della temperatura e componenti di sistema per i settori alimentare e farmaceutico.
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
La nuova frontiera dell'igiene: un'offerta complete per applicazioni
igieniche e asetticheJezik:
italijanščina
Verzija:
10/01/2020
Velikost datoteke:
11.2 MB
Ime datoteke:
EH_Booklet COMPLETO.pdf
-
