Sanitary RTD - iTHERM TrustSens TM371

Self-calibrating hygienic temperature transmitter lowers risk and drives automation in regulated processes

TM371

Primerjava

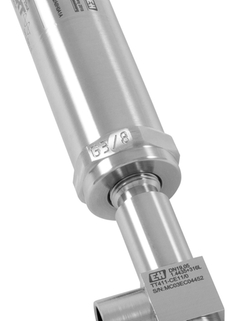

Sanitary RTD TrustSens TM371 with elbow thermowell in hygienic design — Sanitary RTDs, such as the compact TrustSens TM371 temperature measurement device, are available with special TT411 elbow thermowells in hygienic design for clean processes and accurate measurements

iTHERM TrustSens TM371, winner of the HERMES AWARD 2018 — Our sanitary resistance thermometer is recognized by numerous industry awards for its breakthrough technology, including the prestigious HERMES AWARD

Self-calibrating hygienic resistance thermometer with iTHERM QuickNeck — iTHERM TrustSens - innovative thermometer designed for food & beverage and life sciences industries

Sanitary RTD iTHERM TrustSens TM371 with self-calibrating function — Temperature measurement is a critcal part of sterile process applications. iTHERM TrustSens supports automation of product safety and compliance.

Green status LED of the sanitary RTD probe TrustSens TM371 — iTHERM TrustSens - The award-winning thermometer for all hygienic and aseptic applications

Compact sanitary RTD - iTHERM TrustSens TM371 with self-calibrating Pt100 sensor and iTHERM QuickNeck quick-release neck for fast insert removal

Lastnosti na dlani

Response time

t50 = 2.5 s
t90 = 5.4 s
Max. process pressure (static)

at 20 °C: 40 bar (580 psi)
Operating temperature range

Pt100:
-40 °C to 160 °C (-40 °F to 320 °F),
optional up to 190 °C (374 °F)
reference point for automated calibration
Max. immersion length on request

up to 900.00 mm (35.4'')

Vse specifikacije

Področje uporabe

Our award-winning iTHERM TrustSens TM371 sanitary RTD features the world's first self-calibrating Pt100 sensor unit! The hygienic temperature transmitter with Heartbeat Technology effectively eliminates the risk of undetected non-conformities, reduces production downtime while increasing product safety and process efficiency in food, beverage and life sciences applications. The instrument complies with FDA and GMP regulations and integrates with the Netilion cloud-based Industry 4.0 ecosystem.

Designed for critical hygienic / aseptic applications in life sciences, food & beverage
RTD self-calibration in processes such as SIP, UHT, edible oil refining, industrial deep fat frying
Measuring range: -40 to 190 °C (-40 to 374 °F)
Protection class: IP65/67 or IP69
Signal output: 4 to 20 mA, HART®
Optional: Secure Bluetooth® and/or WirelessHART® (requires FieldPort SWA50)
EHEDG, ASME BPE, FDA, 3-A, 1935/2004, 2023/2006, 10/2011, CE, CRN, CSA General Purpose, Explosion protection, e.g. ATEX/IECEx

Prednosti

Reduce risks and costs by implementing fully automated, traceable inline RTD sensor self-calibration; Eliminate non-conformities or undetected failures
True RTD sensor self-calibration making use of the Curie effect; Built-in, long-term stable fix point reference with complete traceability of calibration chain to ITS-90
Full instrument diagnostics, monitoring and verification with Heartbeat Technology
Automated process documentation, built-in memory for 350 calibration events; 24/7 access to printable, audit proof calibration certificates, on-site or through cloud-based system integration
Built-in 4 to 20 mA loop check function saves time and increases process safety
Highest temperature measurement precision: individual transmitter-sensor matching from factory for improved RTD accuracy

Videoposnetki

iTHERM TrustSens TM371 sanitary RTD: The world's first self-calibrating hygienic temperature transmitter
How to perform a fully automated, inline 4 to 20 mA loop check in five easy steps
Lower risk and drive automation in regulated processes using iTHERM TrustSens TM371

Smart instrumentation through Heartbeat Technology

You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
- Več informacij
iTHERM TrustSens self-calibrating sanitary RTD sensor

A unique temperature sensor technology based on an integrated fixed-point reference element that enables reliable and accurate recalibration of the primary Pt100 RTD sensor.
- Več informacij

Segment Xpert

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

Xpert: Obvladovanje najbolj zahtevnih aplikacij

Enostavni produkti
Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

Kaj je FLEX?

Standardni produkti
Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

Kaj je FLEX?

Vrhunski produkti
Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

Kaj je FLEX?

Specialni produkti
Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

Kaj je FLEX?

FLEX izbira	Tehnična odličnost	Preprostost
F L E X Segment Fundamental Zadostite svojim osnovnim merilnim potrebam	Tehnična odličnost	Preprostost
F L E X Segment Lean Obvladajte ključne procese na preprost način	Tehnična odličnost	Preprostost
F L E X Segment Extended Optimirajte procese z inovativnimi tehnologijami	Tehnična odličnost	Preprostost
F L E X Segment Xpert Imejte pod nadzorom najzahtevnejše aplikacije	Tehnična odličnost	Preprostost Spremenljivo

Spoznajte FLEX podrobneje

Loading alternative products

Zgodbe o uspehu

Prevent grain dust ignition in bulk tanks & silos

How temperature profiling increases plant safety and product quality in bulk tanks and silos for food storage.
Preberi celotno zgodbo
Self-calibrating thermometers in hygienic processes

This white paper explains how self-calibrating thermometers can be used in hygienic process engineering. It details theory and practice as well as application examples. Learn more!
Preberi celotno zgodbo
Medical autoclaves

New sensor technology automates recalibrations to reduce risk in batch sterilization. Learn More!
Preberi celotno zgodbo
Automated inline self-calibration at Lonza

Automated inline self-calibration at Lonza for full monitoring throughout bioprocess
Preberi celotno zgodbo
Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Preberi celotno zgodbo
