Memograph M RSG40

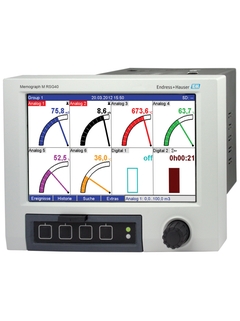

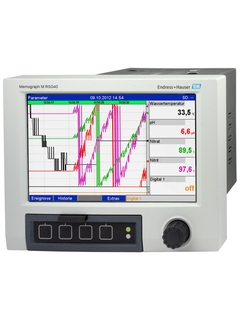

Product Picture Memograph M RSG40 - Advanced Graphic Data Manager ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Electronic Data Acquisition

  • Functions

    Signal analysis

    Interface / modem

    OPC-Server

    ReadWin 2000

    Mathematic formula editor

    energy package, water+steam

  • Maximal input

    20 analog (U, I, TC, RTD, Frequency, Pulse)

    14 digital (control, event and counting inputs)

  • Maximal output

    12 Relay

    2 Analog output (I, Pulse)

    1 Power loop supply

  • Interface

    RS 232

    RS 485

    Ethernet

    Modbus RTU

    Modbus TCP

    PROFIBUS DP

    USB

  • Storage/Recording

    Internal memory

    SD card

    USB Stick

  • Display

    TFT 7" colour graphic display

  • Housing

    panel mounting

    desktop housing

    Field housing

  • Power supply

    100...230 V AC +/-10%

    24V (-10%; +15%) AC/DC

  • Certification

    21 CFR 11

    Milk pasteurisation approval

    UL recognized

    CSA GP

  • Software package

    Batch programme

    Waster water software

    Tele-Alarm software

    Gas-Steam-Heat calculation

    Energy package + Water + Steam

    Waste water + Storm overflow + Tele Alarm

    Tele-Alarm software + Energy package + Water + Steam

  • Measuring principle

    Electronic Data Acquisition

  • Function

    Mass flow and energy calculation for Water and Steam.

  • Certification

    CE,

    EAC,

    UL (US and CA)

  • Input

    4...20 universal, 6…14 digital

  • Output

    2 analog

  • Relay output

    6...12

  • Auxiliary power supply

    24...28 V DC

  • Dimensions (wxhxd)

    195.2 x 149.2 x 227.1 mm

    (7.69" x 5.87" x 8.94")

  • Software

    Internal calculation for mass flow and energy

  • Operation

    Jog shuttle on site and PC software ReadWin

  • Display

    Wide-screen TFT

  • Others

    Memory inside, balancing

  • Measuring principle

    Application manager

  • Measuring principle

    Energy manager

  • Function

    Mass flow and energy calculation for Water and Steam.

  • Calculations

    Not defined

  • Number of applications

    Not defined

  • Data storage

    yes

  • Calculation standards

    Not defined

  • Communication

    Not defined

  • Power supply

    Not defined

  • Loop power supply

    24...28 V DC

  • Protection class

    IP30

  • Input

    4...20 universal

    6…14 digital

  • Output

    2 analog

  • Dimensions (WxHxD)

    195.2 x 149.2 x 227.1 mm (7.69" x 5.87" x 8.94")

  • Operation

    Jog shuttle on site and PC software ReadWin

  • Display

    Wide-screen TFT

  • Software functions

    Internal calculation for mass flow and energy

  • Certificates

    CE

    EAC

    UL (US and CA)

  • Measuring principle

    Data manager

  • Measuring principle

    Advanced Graphic Data Manager

  • Function

    The versatile solution with secure data recording, visualization and application-specific software packages.

  • Input

    20 analog (max) (U, I, TC, RTD, frequency, pulse)

    14 digital (max) (control, event and counting inputs)

  • Output

    12 relays (max)

    2 analog output (max) (I, pulse)

    1 loop power supply

  • Interface

    RS232/485

    Ethernet

    USB

    Modbus RTU/TCP Slave

    Modbus RTU Master

    PROFIBUS DP

  • Storage/Recording

    internal memory

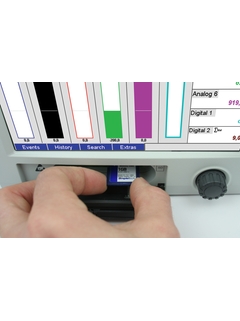

    SD card

    USB flash drive

  • Display

    TFT 7" colour graphic display

  • Housing

    panel mounting

    desktop housing

    field housing

  • Certificates

    21 CFR Part 11

    Milk pasteurisation approval

    UL recognized

    CSA

  • Software package

    Batch software

    Waster water software

    Tele-alarm software

    Gas-steam-heat calculation

    Energy software (water + steam)

    Waste water + storm overflow + Tele Alarm

    Tele-alarm software + energy software (water + steam)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
  • B
  • A
  • E
  • G
  • H
  • I
    • Nr I Order code RSG40X-BA

      Digital board extension, 8 digital inputs + 6 relays + 2 analog outputs, for upgrade please order rear panel!

    • Order code 50078843

      Terminal plug-in 3pol.for power supply

      Ecograph/Memograph/S + Alphalog from unit No.410297XA RIA45, grey coloured connector

    • Order code 71123475

      Terminal plug 3pole "N L PE" pitch 5.08

      for power supply RSG30: from unit No. DB001004267 orange coloured connector

    • Order code 51009211

      Terminal strip 6 pole FMC1,5/6-ST-3,5

      for analog input

    • Order code 71037350

      Terminal strip 4pole FMC1,5/4-ST-3,5

      Memograph M for analog output (on digital I/O board) RIA45 for analog input non Ex (terminal x1,x2,x3,x4 + x5,x6,x7,x8)

    • Order code 71037351

      Terminal strip 10 pole FMC1,5/10-ST-3,5

      for digital input on digital I/O board

    • Order code 71037363

      Terminal strip 9 pole FMC1,5/9-ST-3,5

      for digital input on power supply board

    • Order code 71037408

      Terminal strip 3 pole FKC2,5/3-ST-5,08

      for relay 1 + 2 (two way)

    • Order code 71037410

      Terminal strip 4 pole FKC2,5/4-ST-5,08

      for relay 2+3 and relay on digital I/O board

    • Order code 71037411

      Terminal strip 6 pole FKC2,5/6-ST-5,08

      for relay 4+5+6 on power supply board

    • Order code RSG40A-S6

      RS232/485 adapter set, DIN rail 230VAC, with galv. Isolation for PC/modem

    • Order code RSG40A-S7

      RS232/485 adapter set, DIN rail 115VAC, with galv. Isolation for PC/modem

    • Order code 71187780

      Memorycard SD 1GB neutral

    • Order code RXU10-

      Accessories Datamanager RXU10

    • Order code RSG40A1-

      Memograph M RSG40A1, Software

      (please supply serial number)

  • Predecessor

  • Successor

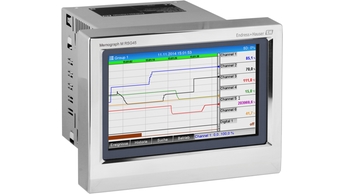

    • Advanced Data Manager Memograph M, RSG45
