Absolute and gauge pressure

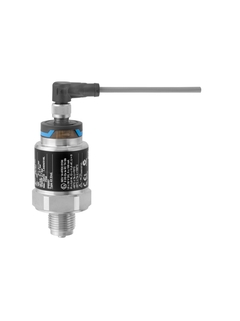

Cerabar PMC21

Cerabar PMC21 ©Endress+Hauser

Cerabar PMC21: Part of a strong team for standard applications - Liquiphant, Liquipoint, Cerabar, Ceraphant

Pressure measuring principle

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids

The Cerabar PMC21 is a very compact pressure transmitter. It features a capacitive, oil-free ceramic sensor and is able to measure absolute or gauge pressure from 100mbar up to 40bar. It is designed to withstand the harsh conditions in the process industry with ingress protection grades up to IP68 and highly abrasion resistant Ceraphire membrane as well as high quality 316L housing. It can be used in most areas as it offers various certifications like hazardous area or marine certificates.

  • Enostavni produkti

  • Lahka izbira, vgradnja in uporaba

Tehnična odličnost

Preprostost

  • Standardni produkti

  • Zanesljivi, robustni, nezahtevni za vzdrževanje

Tehnična odličnost

Preprostost

  • Vrhunski produkti

  • Visoko funkcionalni in praktični

Tehnična odličnost

Preprostost

  • Specialni produkti

  • Zasnovani za posebej zahtevne aplikacije

Tehnična odličnost

Preprostost

Spremenljivo

FLEX izbira Tehnična odličnost Preprostost
  • F
  • L
  • E
  • X

Segment Fundamental

Zadostite svojim osnovnim merilnim potrebam

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Lean

Obvladajte ključne procese na preprost način

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Extended

Optimirajte procese z inovativnimi tehnologijami

Tehnična odličnost
Preprostost
  • F
  • L
  • E
  • X

Segment Xpert

Imejte pod nadzorom najzahtevnejše aplikacije

Tehnična odličnost
Preprostost

Spremenljivo

  • Lastnosti na dlani

    • Accuracy

      0.3 %

    • Process temperature

      -25 °C…+100 °C
      (-13 °F....+185 °F)

    • Pressure measuring range

      +100 mbar…+40 bar
      (+1.5 psi...+600 psi)

    • Measuring cell

      +100 mbar…+40 bar
      (+1.5 psi...+600 psi)

please wait Loading alternative products

Hitra izbira

Izberite med predlaganimi možnostmi
Prodajna cena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ali

Individualna konfiguracija

Nadaljujte z izbiranjem med vsemi možnostmi
  • Prednosti

    • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

    • High reference accuracy of 0.3% together with high long- term stability and repeatability ensures a high quality of process...

  • Področje uporabe

    Pressure transducer with capacitive, oil-free ceramic sensor to measure absolute or gauge pressure in gases or liquids.

    • Process connections: Threads

    • Process temperature: -25 to +100°C (-13 to +212°F)

    • Process pressure: 100mbar to +40bar (1,5 to +600psi)

    • Accuracy: ±0.3% of span

    • International explosion...

Lastnosti in specifikacije

Nazaj

Podrobnosti

  • Merilni princip

    Absolute and gauge pressure

  • Characteristic

    Cost effective pressure transducer, capacitive sensor with ceramic measuring diaphragm

  • Supply voltage

    10…30 VDC

  • Reference Accuracy

    0.3 %

  • Long term stability

    0.2 % of URL/year

  • Process temperature

    -25 °C…+100 °C
    (-13 °F....+185 °F)

  • Ambient temperature

    -40 °C…+85 °C
    (-40 °F…+185 °F)

  • Measuring cell

    +100 mbar…+40 bar
    (+1.5 psi...+600 psi)

  • Max. overpressure limit

    max. 60 bar
    (900 psi)

  • Process connection

    Threads:

    G1/4, G1/2,

    MNPT 1/4, MNPT 1/2,

    DIN13,

    JIS R1/2

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI, EAC

  • Design approvals

    EN 10204-3.1 Final inspection report

    Cleaned from oil and grease

    Cleaned for oxygen applications

  • Marine approvals

    RINA, KR

  • Merilni princip

    Absolute and gauge pressure

  • Characteristic / Application

    Cost effective pressure transducer, capacitive sensor with ceramic measuring diaphragm

  • Supply / Communication

    10…30 VDC

  • Accuracy

    0.3 %

  • Long term stability

    0.2 % of URL/year

  • Ambient temperature

    -40 °C…+85 °C

    (-40 °F…+185 °F)

  • Process temperature

    -25 °C…+100 °C

    (-13 °F....+185 °F)

  • Process pressure absolute / max. overpressure limit

    max. 60 bar

    (900 psi)

  • Pressure measuring range

    +100 mbar…+40 bar

    (+1.5 psi...+600 psi)

  • Process connection

    Threads:

    G1/4, G1/2,

    MNPT 1/4, MNPT 1/2,

    DIN13,

    JIS R1/2

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, FM, CSA, IEC Ex, NEPSI, EAC

  • Design approvals

    EN 10204-3.1 Final inspection report

    Cleaned from oil and grease

    Cleaned for oxygen applications

  • Marine approval

    RINA, KR

Dokumenti / Priročniki / Softver

Pribor / Nadomestni deli

Št.
Kataloška koda
Specifikacija
    • Kataloška koda 71280307

      Valve Plug ISO4400 M16, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Kataloška koda 71280349

      Valve plug ISO4400 NPTF1/2, 4-pole

      Consists of: plug connector, screw, seal, valve plug ring, adapter ring. Usage: FTL31/FTL33, FTW33, PMC11, PMC21, PMP11, PMP21/PMP23.

    • Kataloška koda 52006263

      Socket for plug 4p-125V, 4A-M12

      M12 socket for plug. Self confectionery connection. Usage: plug M12.

    • Kataloška koda 52010285

      Cable 4x0.34, box M12,Cu Sn/Ni,90o,L=5m

      M12 plug connector. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B.

    • Kataloška koda 71395803

      Ex-protection cover

      Material: PC. Mandatory for Ex-version. W/o Ex-protection cover dust Ex-protection not guaranteed! Usage: FTI26, PMC21, PMP21.
